ZZC (V) self operated differential (micro) pressure regulating valve

ZZC (V) self operated differential (micro) pressure regulating valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

The ZZC (V) self operated differential (micro) pressure regulating valve is a kind of actuator product which does not need additional energy. It can be used for nominal pressure PN01, PN10. Differential (micro) pressure can be adjusted piecewise. From 50mm.W.C to 0.1MPa. Its application is very extensive and can be used in industrial combustion furnace system. Control two kinds of materials, such as gas and air flow ratio, so as to achieve ideal combustion. It is used for sealing oil system of hydrogen-cooled power generation unit to control the pressure difference between sealing oil and hydrogen to ensure reliable sealing. The low pressure end of the differential pressure valve is a micro pressure valve (negative pressure, differential pressure, zero force).


There are two types of differential (micro) pressure regulating valves, B and K. The initial position of the B valve spool is always open, and the differential (micro) pressure is closed when it increases. The initial position of the K valve spool is usually closed and the differential (micro) pressure increases when it opens.


Characteristic


No need to stop production, that is, setting the value adjustment.


No packing, no friction exists when the stem is moving up and down, and the upper seal is absolutely reliable.


The actuator is sensitive and sensitive, and tiny pressure changes will be detected.


The valve body is in the form of four links, so K and B can be used for a valve body.


application


A. hydrogen cooled generator seal oil system;


Circulating air volume control of B. fan heating system;


C. two gas flow ratio control;


D. pump bypass regulation


Model compilation

Main technical parameters


Nominal pathDN(mm)
20
25
32
40
50
65
80
100
Rated flow rate System effectKv
ZZCP / ZZVP
8
11
20
32
50
80
100
160
ZZCN
53
83






Rated travel(mm)
6
8
10
15
20
Nominal pressurePN(MPa)
0.10 1.0
Differential pressure regulating range(kPa)
0.5~5.5 5~10 9~14 13~19 18~24 22~28 26~33 31~38
36~44 42~51 49~58 56~66 64~78 76~90 8~100
Medium temperature(℃)
≤80
Adjustment precision(%)
≤10
Allow leakage amount(l/h)
ZZCP / ZZVP
10-4 * valve rated capacity (grade IV)
ZZCN
5 * 10-3 * valve rated capacity (grade II)


Note: 1. ZZCP/ZZVP nominal pressure is 0.1MPa, ZZCN is 1.0MPa


2. ZZCN differential pressure range is 36~44, 42~51, 49~58, 56~66, 64~78, 76~90, 88 to 100KPa.

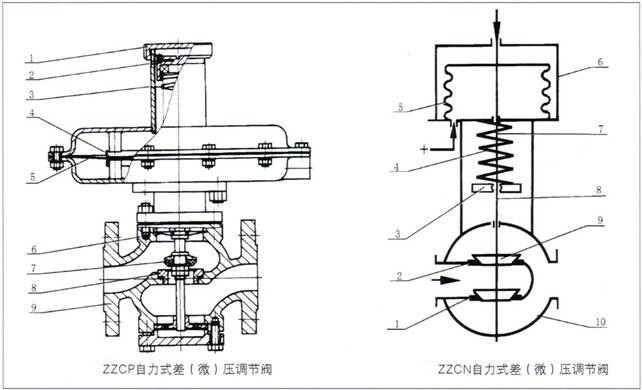

Material of main parts


No
Name
Material Science
No
Name
Material Science
1
Seal
2Cr13
1
uppervalve seat
1Cr18Ni9Ti
2
Spring seat
45
2
lowervalve seat
1Cr18Ni9Ti
3
Spring
60Si2Mn
3
Adjusting disk
2Cr13
4
Tray
1Cr18Ni9Ti
4
Spring seat
45
5
diaphragm
NBR
5
corrugated pipe
1Cr18Ni9Ti
6
Smalldiaphragm
Oil resistant rubber
6
Actuator external cavity
Q235
7
spool
PTFE
7
Push rod
2Cr13
8
valve seat
1Cr18Ni9Ti
8
Stem
1Cr18Ni9Ti
9
valve body
ZG230-450
ZG1Cr18Ni9Ti
9
spool
1Cr18Ni9Ti
10
valve body
ZG230-450

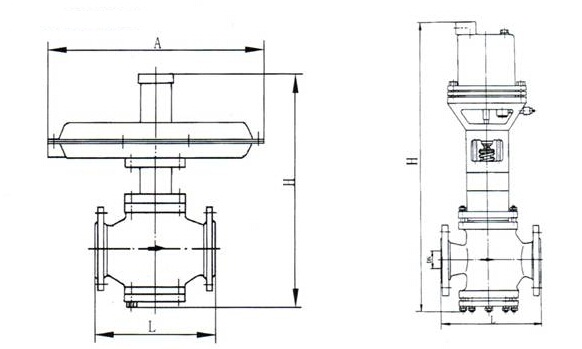

Main dimensions


DN
20
25
32
40
50
65
80
100
A
308
394
308
394
308
394
394
394
H
ZZCP / ZZVP
376
465
365
445
445
490
490
510
ZZCN
536
536
L
ZZCP / ZZVP
150
160
180
200
290
290
310
350
ZZCN
222
222
Weight G(Kg)
12
13
15
17
20
38
38
43
Threaded joint for pressure pipe
M16×1.5
