ZZYP self operated pressure regulating valve

ZZYP self operated pressure regulating valve
  • sell：021-32051999
  • sell：021-32050777
  • fax：021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

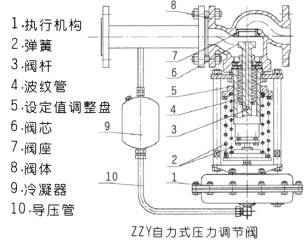

ZZY self-operated pressure regulating valve does not need additional energy. It uses the energy of the regulated medium itself as the power source, introduces the actuator to control the valve core position, changes the pressure difference and flow at both ends, and makes the pressure in front (or behind) of the valve stable. It has the advantages of sensitive action, good sealing and small fluctuation of pressure setting point. It is widely used in automatic control of gas, liquid and steam medium pressure reduction and pressure relief and pressure stabilization.

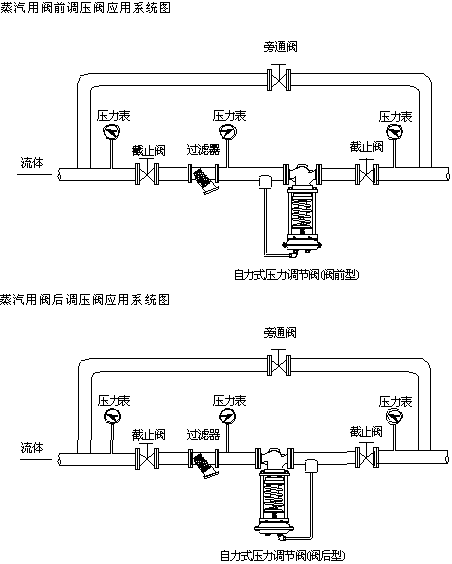

This series of products have single seat (ZZYP), sleeve (ZZYM), double seat (ZZYN) three structures; the actuator has film type, piston type two; action type with pressure relief valve after pressure regulation (type B) and pressure relief valve before pressure regulation (type K). The nominal pressure grade of the product is PN16, 40, 64; the valve body diameter range DN20-300; the leakage grade is grade II, grade IV and grade VI; the flow characteristic is fast opening; the pressure is regulated from 15-2500 kPa. It can meet user's requirements according to needs.


Characteristics of self operated pressure regulating valve


Self-powered pressure regulator can work in a place without electricity and gas without additional energy, which is convenient and energy-saving.


The pressure range is fine and intersecting, and the adjustment precision is high.


The pressure setting value can be continuously set during operation.


For pressure adjustment after valve, the ratio between front pressure and back pressure is 10:1~10:8.


Rubber diaphragm type detection, actuating mechanism has high detection accuracy and sensitive action.


The pressure balancing mechanism is adopted to make the control valve sensitive and precise.


Main parts material of self operated pressure regulating valve

valve body: zg230 - 450 zg1cr18ni9ti zgocr18ni12m02ti


spool: 1cr18ni9ti 0cr18ni12m02ti


valve seat: 1cr18ni9ti 0cr18ni12m02ti


Stem: 1cr18ni9ti 0cr18ni12m02ti


Membrane cover: a3 a3Steel coated with tetrafluoroethylene stainless steel


Filler: PTFE flexible graphite


Rubber diaphragm: butadiene, ethylene propylene, fluorine, oil resistant rubber


Main technical parameters of self operated pressure regulating valve


Nominal path DN(mm)
20
25
32
40
50
65
80
100
125
150
200
250
300
Rated discharge coefficient Kv
7
11
20
30
48
75
120
190
300
480
760
1100
1750
Rated travel (mm)
8
10
14
20
25
40
50
60
70
Nominal pressure PN(MPa)
1.6 、 4.0 、 6.4
Pressure regulating range (kPa)
15 ～ 50 40 ～ 80 60 ～ 100 80 ～ 140 120 ～ 180 160 ～ 220 200 ～ 260
240 ～ 300 280 ～ 350 330 ～ 400 380 ～ 450 430 ～ 500 480 ～ 560 540 ～ 620
600 ～ 700 680 ～ 800 780 ～ 900 880 ～ 1000 950 ～ 1500 1000 ～ 2500
Flow characteristics
Fast open
Adjustment precision ( ％ )
± 5
Use of temperature ( ℃ )
≤ 350
Allow Leakage
Hard seal (l/h)
Single seat: less than 10-4 valve rated capacity (grade IV); double seat, sleeve less than 5X10 -3 valve rated capacity (II level)
Soft seal (ml/h)
0.15
0.30
0.45
0.60
0.90
1.7
4.0
6.75
11.10
16.0
Pressure reduction ratio
Maximum
10
Minimum
1.25


Main dimensions of self operated pressure regulating valves


Nominal path 0N
20
25
32
40
50
65
80
100
125
150
200
250
300
Flange nozzle size B
383
512
603
862
1023
1380
1800
2000
2200
Flange end face distance L
150
160
180
200
230
290
310
350
400
480
600
730
850
Pressure Force Tune Section Fan around
kPa
15 一 140
H
475
520
540
710
780
840
880
915
940
1000
A
280
308
280 — 500
H
455
500
520
690
760
800
870
880
900
950
A
230
120 — 300
H
450
490
510
680
750
790
860
870
890
940
A
176
194
280
480 — 1000
H
445
480
670
740
780
850
860
880
930
A
176
194
280
600 一 1500
H
445
570
600
820
890
950
1000
1100
1200
A
85
96
1000 — 2500
H
445
570
600
820
890
950
1000
1100
1200
A
85
96
weight kg
26
37
42
72
90
114
130
144
180
200
250
Guide pipe nipple thread
M16X1.5
