ZDLQ (X) electronic electric three way regulating valve
- sell:021-32051999
- sell:021-32050777
- fax:021-66099555
Details
- Product Introduction
- Service Promise
- Ordering Process
ZDLQ electronic three-way confluence control valve / ZDLX electronic three-way shunt control valve consists of 3810L (or PSL series) straight-stroke electronic electric actuator and three-way valve. The three-way valve spool structure adopts a cylinder thin wall window and adopts the side direction of the spool. It is applied to proportional regulation or bypass regulation, especially to the regulation of fluid temperature control system of heat exchanger in petroleum industry.
Characteristics of electronic electric three way regulating valve
The electric actuator of the electronic three-way regulating valve is an electronic integrated structure with the function of feeding clothes. It receives a unified standard signal of 4-20mA or 1-5V.DC, converts the current signal into the corresponding linear displacement, automatically controls the opening of the regulating valve, and achieves the pressure, flow, temperature and level of the fluid in the pipeline. Continuous adjustment of technical parameters.
The electronic electric three way regulating valve has the advantages of high adjustment precision, stable and reliable movement and so on. The confluence type is mainly used to mix two fluids into a third type of fluid; the diversion type is mainly used to separate one fluid into two fluids. This product can replace two single and double seat regulating valves which are on and off each other. It is used for regulating and controlling liquid, gas, steam and other media. One three-way valve can replace two single-seat valves or two-seat valves, occupying small space, saving installation pipes and costs.
Technical parameters of electronic electric three way regulating valve
公稱通徑mm | 合流 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
分流 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | |
閥座通徑mm | 26 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | |
額定流量系數kv | 合流 | 8.5 | 13 | 21 | 34 | 53 | 85 | 135 | 210 | 340 | 535 | 800 | 1260 |
分流 | 8.5 | 13 | 21 | 34 | 53 | 85 | 135 | 210 | 340 | 535 | 800 | 1260 | |
公稱壓力(MPa) | 0.6,1.6, 2.5, 4.0, 6.4 | ||||||||||||
行程(mm) | 16 | 25 | 40 | 60 | 100 | ||||||||
流量特性 | 直線 | ||||||||||||
工作溫度℃ | -40~230℃(常溫型),散熱片式230~450℃(中溫型),特殊訂貨-100~600℃ | ||||||||||||
法蘭尺寸 | 符合JB78-59、JB79-59標準,可按JB/79.1-94、JB、ANSI、JIS、DIN 等標準訂貨生產 | ||||||||||||
閥體材質 | WCB(ZG230-450)、ZG1Cr18Ni9Ti、ZG0Cr18Ni12Mo2Ti CF8 CF8M | ||||||||||||
閥芯材質 | 1Cr18Ni9,SS304,0Cr18Ni12Mo2Ti,SS316,ZG1Cr18Ni9Ti | ||||||||||||
閥體型式 | 三通雙座鑄造球型閥 | ||||||||||||
上閥蓋型式 | 普通式(常溫),散熱片式(中溫),長頸式(低溫) | ||||||||||||
配用電動執 行機構型號 | PSL | PSL-202 | PSL-204 | PSL-208 | PSL-312 | PSL325 | |||||||
361L | 361LSA-20 | 361LSB-30 | 361LSB-50 | 361LSC-65 | 361LSC-99 | ||||||||
防爆型 | 361LXA-20 | 361LXB-30 | 361LXB-50 |
Note: 1. It can provide users with ANSI, JPI, JPI and other local flange standard products, flange spacing according to user needs to determine.
2. working temperature, nominal pressure, nominal diameter beyond the list of products can be resolved with our company.
Technical parameters of electronic electric three way regulating valve actuator
型號 | 額定輸出力N | 速度mm/s | 技術參數 | ||||
PSL | 361L | PSL | 361L | PSL | 361L | PSL | 361L |
201 | 361LSA-08 361LXA-08 | 1000 | 800 800 | 0.25 | 4.2 4.2 | 電源:AC220V 50Hz 輸入信號:DC4-20mA DC1-5V (信號線用屏蔽線) 輸出信號:DC4~20mA 防護等級:IP67 帶手輪 | 電源:AC220V 50Hz 輸入信號:DC4-20mA DC1-5V (信號線用屏蔽線) 輸出信號:DC4~20mA 防護等級:相當IP55 隔爆標志:ExdⅡBT4 帶手柄 |
202 | 361LSA-20 361LXA-20 | 2000 | 2000 2000 | 0.50 | 2.1 2.1 | ||
204 | 361LSB-30 361LXB-30 | 4500 | 3000 3000 | 0.50 | 3.5 3.5 | ||
208 | 361LSB-50 361LXB-50 | 8000 | 5000 5000 | 1.00 | 1.7 1.7 | ||
312 | 361LSC-65 | 12000 | 6500 | 0.60 | 2.8 | ||
325 | 361LSC-99 | 25000 | 10000 | 1.0 | 2.0 |
項目 | 指標值 | ||
基本誤差% | ±2.5 | ||
回差% | 2.5 | ||
死區% | 1.0 | ||
始終點偏差% | 電開 | 始點 | ±2.5 |
終點 | ±2.5 | ||
電關 | 始點 | ±2.5 | |
終點 | ±2.5 | ||
可調范圍 | 30:1 | ||
額定行程偏差% | 2.5 | ||
允許泄量L/H | 符合JB/T7387-94 IV級 小于額定容量的10-4 |
公稱通徑mm | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
允許壓差MPa | 3.32 | 2.20 | 2.20 | 1.41 | 1.38 | 0.94 | 0.61 | 0.51 | 0.36 | 0.20 | 0.19 | 0.13 |

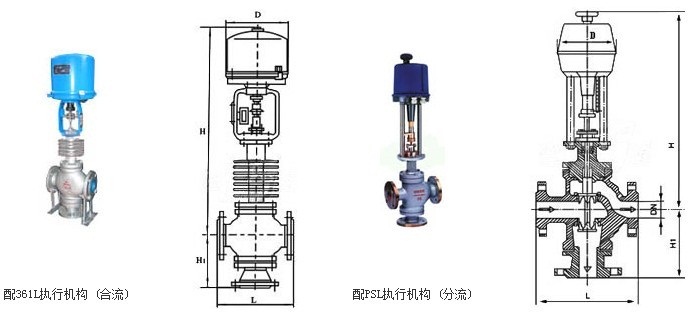

公稱通徑(mm) | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | ||
L(mm) | PN1.6MPa | 185 | 200 | 220 | 250 | 275 | 300 | 350 | 410 | 450 | 550 | 640 | 740 | |
PN4.0MPa | 190 | 210 | 230 | 255 | 285 | 310 | 355 | 425 | 460 | 560 | 660 | 760 | ||
PN6.4MPa | 200 | 210 | 235 | 265 | 295 | 320 | 370 | 440 | 475 | 570 | 670 | 770 | ||
H1(mm) | PN1.6MPa | 140 | 150 | 160 | 180 | 200 | 220 | 220 | 256 | 278 | 322 | 465 | 580 | |
PN4.0MPa | 150 | 160 | 170 | 190 | 220 | 232 | 256 | 295 | 313 | 372 | 474 | 585 | ||
PN6.4MPa | 160 | 170 | 180 | 200 | 220 | 242 | 266 | 300 | 318 | 382 | 474 | 585 | ||
配PSL | H(mm) | 普通型 | 775 | 781 | 775 | 790 | 819 | 820 | 810 | 917 | 927 | 947 | 1252 | 1545 |
散熱片型 | 905 | 911 | 905 | 920 | 766 | 983 | 973 | 1116 | 1126 | 1144 | 1805 | 1825 | ||
D(mm) | 176 | |||||||||||||
重量(KG) | 61.5 | 64.5 | 69.5 | 76.5 | 109 | 132 | 164 | 207 | 267 | 395 | 430 | 480 | ||
配361L | H(mm) | 普通型 | 538 | 544 | 660 | 675 | 744 | 745 | 735 | 972 | 982 | 1027 | 1204 | 1265 |
散熱片型 | 668 | 674 | 790 | 805 | 691 | 908 | 898 | 1171 | 1181 | 1224 | 1440 | 1502 | ||
D(mm) | 225 | 310 | ||||||||||||
重量(KG) | 69 | 72 | 85 | 92 | 124 | 147 | 179 | 260 | 320 | 448 | 627 | 780 |
