ZDLS electronic high-pressure electric angle regulator consists of PS series and 3610 series straight-stroke electric actuator and low flow resistance through single-seat valve. The electric actuator is an electronic integrated structure with servo amplifier, input control signal (4-20mADC or 1-5VDC) and power supply can control the valve opening to adjust the pressure, flow, liquid level, temperature and other parameters. It has the characteristics of sensitive action, simple connection, large volume, small volume and high adjustment precision. Angular high pressure regulating valve is a product developed to solve the problems of short service life, easy fracture of valve stem and easy shedding of bushing under the condition of high pressure or high pressure difference, serious cavitation and erosion. It uses multi-stage throttling to distribute the pressure difference, reduces cavitation, erosion, deflection damage, greatly improves the service life of the control valve, especially in the urea system than ordinary high-pressure valve life increased by 2-3 times. The valve body is rectangular, the valve core is single-directional structure, the valve body flow path is simple, the resistance is small, especially suitable for high viscosity, containing suspended solids and granular medium fluid regulation, can avoid coking, adhesion, plugging.
Main technical parameters of electronic electric high pressure angle regulating valve
Nominal path(mm) | 6 | 10 | 15 | 25 | |||||||||||||||
Valve seat diameter(mm) | 3 | 4 | 6 | 4 | 5 | 7 | 8 | 10 | 6 | 7 | 8 | 10 | 12 | 7 | 8 | 10 | 12 | 16 | 20 |
discharge coefficientKv | 0.04 | 0.1 | 0.1 | 0.4 | 0.4 | 1 | 1.6 | 2.5 | 4 | 6.3 | 8 | ||||||||
0.16 | 0.4 | 0.16 | 1 | 1.6 | 2.5 | 0.63 | 1 | 1.6 | 2.5 | 4 | |||||||||
0.063 | 0.25 | 0.25 | 0.63 | ||||||||||||||||
Nominal path(mm) | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | ||||||||||
Valve seat diameter(mm) | 16 | 20 | 30 | 20 | 38 | 30 | 50 | 38 | 65 | 50 | 80 | 65 | 100 | 65 | 125 | 100 | 150 | 125 | 200 |
discharge coefficient | 6.3 | 8 | 16 | 8 | 25 | 16 | 40 | 25 | 63 | 40 | 100 | 63 | 160 | 100 | 250 | 160 | 400 | 250 | 600 |
Adjustable range | Kv value <18 when r= "20:1; Kv value" >18 R=30:1 | ||||||||||||||||||
Nominal pressure | 1.6、4.0、6.4、10、16、22、32MPa | ||||||||||||||||||
Spool form | Sleeve guide single seat plunger spool | ||||||||||||||||||
Flow characteristics | straight line | ||||||||||||||||||
Form of action | Electric and electric | ||||||||||||||||||
working temperature | Common type-40 ~ 230 C; Heat sink type230 ~ 450 C, special order 450~600 C | ||||||||||||||||||
Flanges standard | Comply with JB/T2769-92 standard, and can be ordered according to ANSI, JIS and DIN. | ||||||||||||||||||
control signal | 4 ~ 20mA.DC; 1 ~ 5V.DC; 0 ~ 10V.DC (related to Executive Agency). | ||||||||||||||||||
Power Supply | S220V.AC, 50HZ; 380V.AC, 50HZ (related to Executive Agency) |
Nominal path(mm) | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | |||||
Valve seat diameter(mm) | 10 | 12 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
discharge coefficientKv | 1.6 | 2.5 | 4 | 6.3 | 10 | 16 | 25 | 40 | 63 | 100 | 160 | 250 | 400 | 630 | 1000 | 1600 |
Adjustable range | 30:1 | |||||||||||||||
Nominal pressure | Standard products 1.6, 4, 6.4MPa; | |||||||||||||||
Spool form | Single seat plunger spool | |||||||||||||||
Flow characteristics | Linear and equal percentage | |||||||||||||||
working temperature | Common type-40 ~ 230 C; Heat sink type230 ~ 450 C, special order 450~600 C | |||||||||||||||
Flanges standard | According to JB78-59 and JB79-59 standards, it can be ordered according to JB/79.1-94, JB/79.2-94, ANSI, JIS, DIN and so on. |
Note: Products whose working temperature, nominal pressure and nominal diameter exceed the scope of the list can be settled through consultation with this company.
Performance index of electronic electric high pressure angle regulating valve
Leakage rate: IV, less than 10-4 of rated flow.
Backlash: 2% with 3610L.
There are 1% basic errors in matching PSL executing agencies:
The executing agency with 3610L is + 2.5%.
Matching PSL executive body is + 1%.
Note: the filler used in the test is standard PTFE packing.
Electronic electric high pressure angle control valve main parts material
Valve body material: ZG230-450, ZG1Cr18Ni9Ti, 316, 316L, wear resistant alloy, etc.
Core material: 1Cr18Ni9Ti, 316, 316L, wear resistant alloy, F4, etc.
Filler material: PTFE and flexible graphite.
Allowable differential pressure of electronic electric high pressure angle control valve
Nominal path(mm) | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | ||||||
Valve seat diameter(mm) | 10 | 12 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | |
Executive Agency | Allowable pressure difference△P(MPa) | ||||||||||||||||
PSL | PSL202 | 6.4 | 6.4 | 6.4 | 4.90 | 3.14 | 1.92 | 1.23 | 0.78 | ||||||||
PSL204 | 4.31 | 2.76 | 1.76 | 1.04 | 0.69 | 0.44 | |||||||||||
PSL208 | 1.86 | 1.23 | 0.78 | 0.50 | 0.35 | 0.20 | |||||||||||
PSL320 | 1.26 | 0.87 | 0.49 | 0.32 | 0.22 | ||||||||||||
PSL | 361LSA-20 | 6.4 | 6.4 | 6.4 | 4.90 | 3.14 | 1.92 | 1.23 | 0.78 | ||||||||
361LSB-50 | 4.79 | 3.06 | 1.96 | 1.16 | 0.76 | 0.49 | |||||||||||
361LSC-65 | 1.51 | 0.99 | 0.64 | 0.41 | 0.28 | ||||||||||||
361LSC-99 | 0.63 | 0.44 | 0.25 | 0.16 | 0.11 |
Note: (1) the actual configuration needs to be determined according to the specific process parameters.
(2) If the allowable pressure difference is not clear or the maximum working pressure difference is beyond the scope of the list, please contact us and take appropriate measures to solve it.

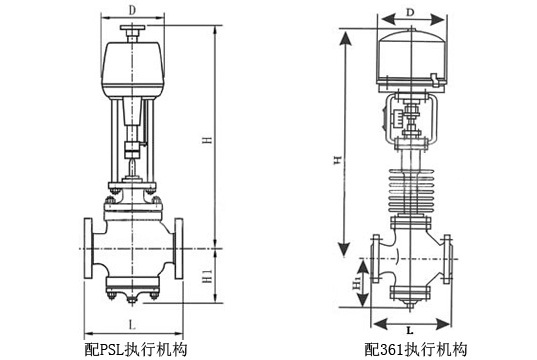

Nominal path(mm) | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | ||
L1(mm) | 98 | 105 | 105 | 120 | 135 | 190 | 225 | 270 | 315 | 367 | |||
L2(mm) | PN1.6MPa | 85 | 95 | 115 | 115 | 130 | 145 | 155 | 175 | 200 | 240 | 300 | |
PN4.0MPa | 85 | 95 | 115 | 115 | 130 | 145 | 155 | 175 | 200 | 240 | 300 | ||
PN6.4MPa | 100 | 115 | 130 | 130 | 150 | 170 | 190 | 215 | 250 | 275 | 325 | ||
PSL | H(mm) | Common type | 753 | 761 | 789 | 778 | 793 | 819 | 858 | 893 | 921 | 951 | 956 |
Heat sink type | 883 | 891 | 919 | 908 | 923 | 892 | 1021 | 1056 | 1120 | 1150 | 1156 | ||
D(mm) | 176 | ||||||||||||
weight(KG) | 13.5 | 22.5 | 25.5 | 29.5 | 50 | 60 | 78 | 119 | 157 | 255 | |||
361L | H(mm) | Common type | 516 | 542 | 552 | 688 | 744 | 783 | 818 | 976 | 1006 | 1036 | |
Heat sink type | 646 | 654 | 682 | 818 | 907 | 946 | 981 | 1175 | 1205 | 1235 | |||
D(mm) | 225 | 310 | |||||||||||
weight(KG) | 21 | 30 | 33 | 41 | 45 | 65 | 75 | 93 | 172 | 210 | 308 |
