ZJHM pneumatic sleeve regulating valve
- sell:021-32051999
- sell:021-32050777
- fax:021-66099555
Details
- Product Introduction
- Service Promise
- Ordering Process
ZJHM pneumatic sleeve control valve is small, light, high performance, large capacity, is in line with the IEC standards of a new generation of universal control valve products. It is suitable for the production process system of general fluid medium and technological conditions.
The product consists of a new pneumatic multi spring actuator and a low flow resistance sleeve valve. The characteristics are as follows:
1. Adopting balanced core, small unbalanced force, large allowable differential pressure and stable operation.
2. Large spool guiding surface can improve oscillation caused by eddy current and impact and reduce damage.
3, noise reduction is about 10bd compared with ordinary one or two seat control valves.
4, simple structure, easy installation and maintenance.
Main technical parameters of pneumatic sleeve regulating valve
公稱通徑mm | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | ||||
閥座直徑mm | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 可與本公司 商洽生產 | |||
額定流量 系數Kv | 直線 | 11 | 17.6 | 27.5 | 44 | 69 | 110 | 176 | 275 | 440 | 690 | 1000 | 1600 | |||
等百分比 | 10 | 16 | 25 | 40 | 63 | 100 | 160 | 250 | 400 | 630 | 900 | 1440 | ||||
公稱壓力MPa | 0.6 1.6 4.0 6.4 | |||||||||||||||
行程mm | 16 | 25 | 40 | 60 | 100 | |||||||||||
流量特性 | 直線、等百分比、快開型 | |||||||||||||||
介質溫度℃ | -40~230℃(常溫型),散熱片式230~450℃(中溫型),特殊訂貨-100~600℃ | |||||||||||||||
法蘭標準 | 符合JB78-59、JB79-59標準,可按JB/79.1-94、JB/79.2-94、ANSI、JIS、DIN 等標準訂貨生產 | |||||||||||||||
閥體材質 | PN (MPa) | 0.6,1.6 | WCB(ZG230-450) CF3CF8 CF8M | |||||||||||||
4.0,6.4 | WCB(ZG230-450)、ZG1Cr18Ni9Ti、ZG0Cr18Ni12Mo2Ti CF8 CF8M | |||||||||||||||
閥體型式 | 直通單座鑄造球型閥 | |||||||||||||||
閥芯材質 | 1Cr18Ni9、0Cr18Ni12Mo2Ti CF8 CF8M | |||||||||||||||
上閥蓋形式 | 普通式(常溫型)、熱片式(中溫型)、低溫型 | |||||||||||||||
可調比R | 50:1 | |||||||||||||||
氣源接頭 | M16×1.5 |
Note: ANSI, JPI, JIS flange products can be provided for users, and the flange distance is determined according to user needs.
Pneumatic sleeve control valve main parts material
零件名稱 | 材料 | 溫度范圍 |
閥體上閥蓋 | HT200 | -20~200℃ |
ZG230-450 | -40~450℃ | |
ZG1Cr18Ni9Ti | -250~550℃ | |
ZG0Cr18Ni12Mo2Ti | -40~600℃ | |
閥芯、閥座 | 1Cr18Ni9 | -250~550℃ |
0Cr18Ni12Mo2Ti | -250~550℃ | |
填 料 | 聚四氟乙烯 | -40~200℃ |
膜 片 | 丁晴橡膠夾增強滌淪織物 | |
壓縮彈簧 | 60Si2Mn | |
膜 蓋 | A3 |
型 號 | ZHA(B)-22 | ZHA(B)-23 | ZHA(B)-34 | ZHA(B)-45 |
you效面積cm2 | 350 | 350 | 560 | 900 |
行 程mm | 16 | 25 | 40 | 60 |
彈簧范圍KPa | 20~100(標準);40~200;80~240;20~60;60~100 |
項目 | 指標值 | 項目 | 指標值 | |||||
基本誤差% | 不帶定位器 | ±5.0 | 始 終 點 偏 差 % | 氣關 | 不帶定位器 | 始點 | ±5.0 | |
終點 | ±2.5 | |||||||
帶定位器 | ±1.0 | 帶定位器 | 始點 | ±1.0 | ||||
終點 | ±1.0 | |||||||
回差% | 不帶定位器 | 3.0 | 氣開 | 不帶定位器 | 始點 | ±2.5 | ||
終點 | ±5.0 | |||||||
帶定位器 | 1.0 | 帶定位器 | 始點 | ±1.0 | ||||
終點 | ±1.0 | |||||||
死區% | 不帶定位器 | 3.0 | ||||||
帶定位器 | 0.4 | 允許泄漏量L/h | 1×10-3× 閥額定 容量 | |||||
額定行程偏差% | ±2.5 |
Note: This product carries out GB/T4213-92 national standard.
Allowable pressure difference of pneumatic sleeve control valve
開關 方式 | 執行 機構 型號 | 彈簧 范圍 KPa | 氣源 壓力 KPa | 需 要 附 件 | 公稱通徑(閥座直徑)mm | |||||||
25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | |||||
氣 關 | ZHA-22 | 20~100 20~100 40~200 | 0.14 0.25 0.40 | - P P或R | 3.00 6.4 6.4 | |||||||
ZHA-23 | 20~100 20~100 40~200 | 0.14 0.25 0.40 | - P P或R | 2.25 6.4 6.4 | 1.95 6.4 6.4 | |||||||
ZHA-34 | 20~100 20~100 40~200 | 0.14 0.25 0.40 | - P P或R | 2.36 6.4 6.4 | 2.04 6.4 6.4 | 1.67 6.4 6.4 | ||||||
ZHA-45 | 20~100 20~100 40~200 | 0.14 0.25 0.40 | - P P或R | 1.41 6.4 6.4 | 1.14 6.4 6.4 | |||||||
氣 開 | ZHA-22 | 20~100 40~200 80~240 | 0.14 0.25 0.40 | - P或R P | 1.5 4.5 6.4 | |||||||
ZHA-23 | 20~100 40~200 80~240 | 0.14 0.25 0.40 | - P或R P | 1.13 3.38 6.40 | 0.98 2.93 6.4 | |||||||
ZHA-34 | 20~100 40~200 80~240 | 0.14 0.25 0.40 | - P或R P | 1.18 3.54 6.4 | 1.02 3.06 6.4 | 0.84 2.51 5.85 | ||||||
ZHA-45 | 20~100 40~200 80~240 | 0.14 0.25 0.40 | - P或R P | 0.71 2.12 4.94 | 0.57 1.71 4.00 |
Note: 1, P - valve positioner; R - pressure relay.
2. Allow the differential pressure to close the P2=0 state of the valve and the maximum value of delta P.
3. The maximum pressure difference is over 1.0MPa, and the surface of the plug and sleeve is hardfacing.
Accessories can be supplied:
Locator, air filter pressure reducer, retaining valve, stroke switch, valve position conveyor, solenoid valve, handwheel mechanism, etc.

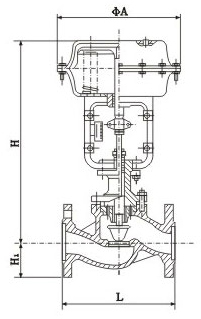

DN | L | H | H1 | 質量(kg) | φA | |||||||
PN16 | PN40 | PN64 | 普通 | 高溫 | PN6 | PN16 | PN40 | PN64 | PN6 PN16 | PN40 PN64 | ||
25 | 185 | 197 | 210 | 410 | 560 | 50 | 57 | 70 | 20 | 24 | 285 | |
40 | 222 | 235 | 251 | 455 | 620 | 65 | 75 | 85 | 26 | 35 | ||
50 | 254 | 267 | 286 | 457 | 627 | 70 | 82 | 90 | 30 | 40 | ||
65 | 276 | 292 | 311 | 610 | 790 | 80 | 92 | 100 | 47 | 66 | 360 | |
80 | 298 | 317 | 337 | 622 | 807 | 95 | 100 | 107 | 55 | 78 | ||
100 | 352 | 368 | 394 | 640 | 850 | 105 | 110 | 117 | 125 | 65 | 99 | |
150 | 451 | 473 | 508 | 870 | 1130 | 132 | 142 | 150 | 172 | 130 | 160 | 470 |
200 | 600 | 650 | 890 | 1150 | 160 | 170 | 187 | 207 | 175 | 250 | ||
250 | 730 | 775 | 1203 | 1523 | 187 | 202 | 225 | 235 | 350 | 470 | 580 | |
300 | 850 | 900 | 1234 | 1554 | 220 | 230 | 257 | 265 | 500 | 660 |
