V230/V231D self operated pressure regulating valve
- sell:021-32051999
- sell:021-32050777
- fax:021-66099555
Details
- Product Introduction
- Service Promise
- Ordering Process
V230D/V231D self-acting pressure (differential pressure) regulating valve is composed of membrane (piston) actuator, valve body, valve seat, valve core, balance spring and other components. It is a kind of valve which can automatically adjust the pressure without external energy and only rely on the change of the pressure of the regulated medium itself. It is produced by introducing the controlled medium into the actuator according to the mechanical principle. The energy-saving products with constant or reduced pressure in front or behind the valve are suitable for the pressure control of non-corrosive liquids, gases, steam and other media. They are widely used in petroleum, chemical, metallurgical, light industry and urban heating and heating systems.
Product characteristics of self operated pressure (differential pressure) regulating valve
The greatest characteristic of self-operated pressure (differential pressure) regulating valve is that it can work in the place without electricity and gas, and the pressure setting value can be adjusted at will during operation.
This product has nominal pressure PN1.6, 2.5, 4.0; nominal diameter range 20 300 mm; service temperature 300 Various varieties available.
Type specification of self pressure (differential pressure) regulating valve
category | Pressure control valve | Differential pressure control valve | ||||||
Valve rear pressure regulating valve | Pressure regulating valve before valve | Differential pressure rising valve closing type | Differential pressure rising valve open type | |||||
Hard seal | Soft seal | Hard seal | Soft seal | Hard seal | Soft seal | Hard seal | Soft seal | |
Model | V230D01 | V231D01 | V230D02 | V231D02 | V230D03 | V231D03 | V230D04 | V231D04 |
Specifications | DN15~200 |
Material code | C(WCB) | P(304) | R(316) | |
main Spare parts | valve body | WCB(ZG230-450) | ZG1Cr18Ni9Ti(304) | ZG1Cr18Ni12Mo2Ti(316) |
Valve core and valve seat | 1Cr18Ni9Ti(304) | 1Cr18Ni9Ti(304) | 1Cr18Ni12Mo2Ti(316) | |
Stem | 1Cr18Ni9Ti | 1Cr18Ni9Ti | 1Cr18Ni12Mo2Ti | |
diaphragm | EPDM或FKM夾纖維 | |||
Membrane cover | A3鋼鍍鋅 | |||
filler | 聚四氟乙烯,柔性石墨 | |||
Spring | 60Si2Mn |
Nominal pathDN(mm) | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | ||||
Rated discharge coefficientKv | 6.3 | 8 | 16 | 20 | 32 | 50 | 80 | 125 | 160 | 320 | 450 | ||||
Noise measurement coefficient Z value | 0.6 | 0.6 | 0.55 | 0.55 | 0.5 | 0.5 | 0.45 | 0.4 | 0.35 | 0.3 | 0.2 | ||||
Allowable pressure difference | 1.6(MPa) | 1.6 | 1.5 | 1.2 | 1.0 | ||||||||||
4.0(MPa) | 2.0 | 1.5 | 1.2 | 1.0 | |||||||||||
Nominal pressure(MPa) | 1.6 2.5 4.0 | ||||||||||||||
Adjustment precision(%) | ±5 | ||||||||||||||
working temperature(℃) | Liquid < 140; Gas < 80; Condenser < 200; Condenser and radiator < 350; Condenser and extension < 300; | ||||||||||||||
Applicable medium | Holding water, gas, steam, low viscosity medium | ||||||||||||||
Pressure balance element | corrugated pipe | Rolldiaphragm | |||||||||||||
Allowable leakage | Hard seal(L/h) | Less than 4 * 10-4 * valve rated capacity | |||||||||||||
Soft seal | 10Bubble/min | 20Bubble/min | 40Bubble/min | ||||||||||||
Maximum working pressureMPa | Relationship between Nominal pressure (delta Pmax and working pressure and working temperature) |
Model | V230D01(D03) V231D01(D03) | V230D02(D04) V231D02(D04) | ||||||
effective areacm2 | 32※ | 80※ | 250 | 630 | 32※ | 80※ | 250 | 630 |
Pressure setting rangeMPa | 0.3~1.2 | 0.1~0.6 | 0.015~0.15 | 0.005~0.035 | 0.3~1.1 | 0.1~0.5 | 0.015~0.12 | 0.005~0.035 |
0.8~1.6 | 0.05~0.3 | 0.01~0.07 | 1.0~1.6 | 0.05~0.25 | 0.01~0.06 | |||
Ensure minimum pressure difference for normal working pressure.△P MPa | ≥0.05 | ≥0.04 | ≥0.01 | ≥0.05 | ≥0.05 | ≥0.04 | ≥0.01 | ≥0.05 |
Allow maximum pressure difference between upper and lower membrane chambers.MPa | 2.0 | 1.25 | 0.4 | 0.15 | 2.0 | 1.25 | 0.4 | 0.15 |
Tripmm | 18 | 18 | 23 | 23 | 18 | 18 | 23 | 23 |
Control pipeline, connector | Copper tube or steel pipe 10 * 1; card sleeve joint R1/4 " |
Note: the pressure setting range is not applicable to DN150~200.

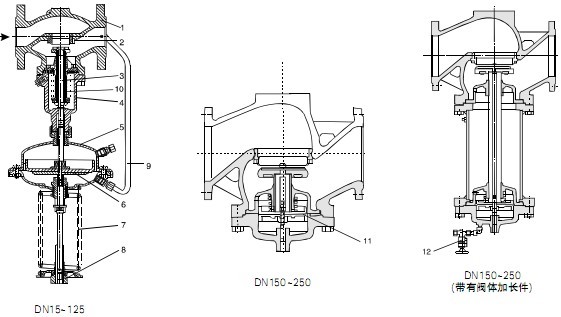

Self operated pressure (pressure difference) regulating valve structure
1 | valve body | 2 | valve seat | 3 | Valve shaft | 4 | Valve cover | 5 | Membrane cover | 6 | diaphragm |
7 | Spring | 8 | Adjusting nut | 9 | Pressure tube | 10 | corrugated pipe | 11 | balancediaphragm | 12 | Filling valve |

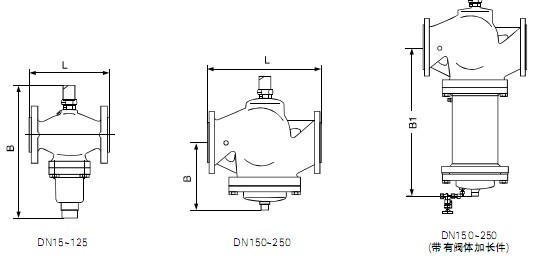

Nominal pathDN(mm) | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
L(mm) | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 |
B(mm) | 212 | 212 | 238 | 238 | 240 | 240 | 275 | 275 | 380 | 380 | 295 | 325 |
effective areacm2 | 32 | 80 | 250 | 630 | |
ΦR(mm) | 172 | 172 | 263 | 380 | |
H | D01(D03) | 435 | 430 | 470 | 520 |
D02(D04) | 440 | 435 | 440 | 520 |
