F943X electric fan glasses valve
- sell:021-32051999
- sell:021-32050777
- fax:021-66099555
Details
- Product Introduction
- Service Promise
- Ordering Process

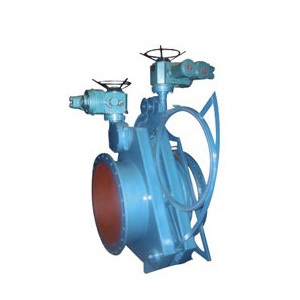

Electric fan-shaped glasses valve, also known as electric fan-shaped blind valve, mainly consists of left valve body, right valve body, sector gate, stainless steel bellows, electric drive device, electric clamping device and other parts. The valve body adopts three point locking fan gate structure. The sealing part adopts stainless steel and rubber sealing ring, which has good sealing performance and long service life. The sealing ring is arranged on the gate plate and is convenient for replacing the sealing ring when maintaining. Electric operation, smooth operation, flexible start and reliable action. The clamping mechanism is clamped by screw nut and has good self locking ability. The electric fan glasses valve is equipped with stainless steel bellows, which has the characteristics of strong flexibility and long service life.
Main performance parameters
公稱壓力MPa | 0.25 | 0.15 | 0.10 | 0.05 |
密封試驗壓力MPa | 0.275 | 0.165 | 0.11 | 0.055 |
強度試驗壓力MPa | 0.375 | 0.225 | 0.15 | 0.075 |
驅動源 | 壓縮空氣0.4-0.6MPa 油壓壓力6.3MPa 3相380V50HZ | |||
適用溫度℃ | 丁腈橡膠 | 硅橡膠 | 氟橡膠 | |
-20-100 | -20-250 | -20-300 | ||
適用介質 | 煤氣、其他可燃?xì)怏w | |||
啟閉時間S | ≤60 | |||
主要零部件材料 | 閥體、閘板為碳鋼;閥桿為不銹鋼;密封圈為硅橡膠 |
DN | D | D1 | b | n-φd | L |
300 | 440 | 395 | 22 | 12-φ22 | 580 |
350 | 490 | 445 | 24 | 12-φ22 | 580 |
400 | 540 | 495 | 24 | 16-φ22 | 680 |
450 | 595 | 550 | 24 | 16-φ22 | 680 |
500 | 645 | 600 | 24 | 16-φ22 | 680 |
600 | 755 | 705 | 26 | 20-φ26 | 680 |
700 | 860 | 810 | 26 | 24-φ26 | 680 |
800 | 975 | 920 | 26 | 24-φ30 | 680 |
900 | 1075 | 1020 | 26 | 24-φ30 | 710 |
1000 | 1175 | 1120 | 26 | 28-φ30 | 710 |
1100 | 1275 | 1220 | 26 | 28-φ30 | 710 |
1200 | 1375 | 1320 | 26 | 32-φ30 | 730 |
1300 | 1475 | 1420 | 26 | 32-φ30 | 830 |
1400 | 1575 | 1520 | 26 | 36-φ30 | 830 |
1500 | 1675 | 1620 | 26 | 36-φ30 | 830 |
1600 | 1790 | 1730 | 26 | 40-φ30 | 830 |
Installation instructions
After the electric fan-shaped blind valve is installed, the valve base should be fixed by the bracket, and the valve is forced on the bracket when it moves. First start the electric clamping device to move the left and right valve body, the valve body and the gate completely separated, open or close the gate electric device, then start the electric clamping device, check whether the left and right valve body is close to the valve body and whether the limit switch of the electric device is working.
