FS948W electric butterfly release valve

FS948W electric butterfly release valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

FS948W electric butterfly release valve is composed of valve body, butterfly plate, connecting rod, muffler, exhaust fan and other components. The valve can be opened and closed by turning the butterfly plate with a manual lever mechanism or an electric device to reduce or completely stop the air supply to the blast furnace without stopping the blower and discharge the excess gas into the atmosphere. FS948W electric butterfly release valve has a special structure, which can be operated for a long distance by electric drive. Moving the size of the disc of the ventilation valve can conveniently change the size of the air volume and output the signal through the automatic position on the ventilation valve. Use DFP-09 electric operator to display valve opening size. As long as the electric operator is controlled, the required air volume can be achieved. FS948W electric butterfly relief valve is suitable for ventilation pipes of building materials, metallurgy, chemical industry, power station and other industries, as a device for automatic regulation or remote control of air volume required by equipment. Under given air pressure, the required air volume is automatically controlled by servo amplifier, electric operator, valve position feedback and other devices. The structure is simple and easy to operate.

Main performance parameters

Nominal diameter: 400~1400;

Nominal pressure: 0.25MPa;

Applicable temperature: less than 250 degrees centigrade;

Driving mode: manual, electric, hydraulic;

Applicable medium: air and other gases;

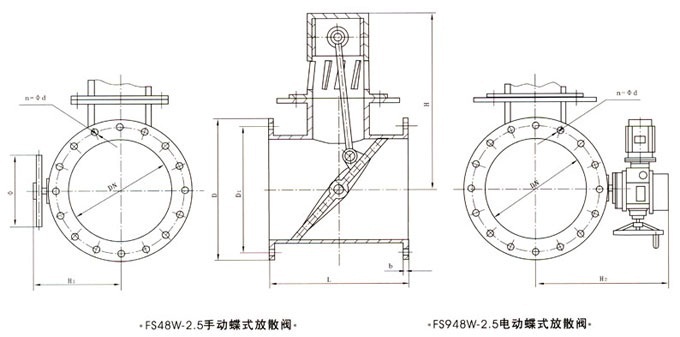

Main shape connection dimensions


DN
D1
D
L
b
n-φd
H
H1
H2
φ
電動裝置
重量(Kg)
型號
功率KW
手動
電動
400
495
540
350
16
16-φ22
650
380
660
350
WQ30
0.09
205
225
450
550
595
370
16
16-φ22
700
380
690
350
228
250
500
600
645
400
20
20-φ22
730
450
720
400
WQ60
0.18
265
300
600
705
755
530
20
20-φ26
870
525
780
400
403
440
700
810
860
600
24
24-φ26
1070
600
830
500
650
685
800
920
975
750
24
24-φ30
1190
700
880
500
WQ90
0.37
850
890
900
1020
1075
750
24
24-φ30
1510
750
930
600
1100
1140
1000
1120
1175
800
28
28-φ30
1680
800
1000
600
WQ120
0.55
1380
1430
1200
1320
1375
900
32
32-φ30
1880
900
1100
700
1880
1930
1400
1520
1575
1000
36
36-φ30
2110
1050
1250
700
2530
2590


The best quality, first-class service Qigao creates more value for you!

"Qigao Valve" expects to continuously improve service quality and strive for excellence. "Sincere service" is the eternal theme of "Qigao". "Qigao" strictly followsIS09001-2000 Quality system certification requirements, strict quality control, responsibility to people, to ensure the healthy operation of production, sales and service. Strengthen communication with users and provide quality products to our customers with perfection and perfect service. Hereby our factory makes the following commitments:

Product Standards:

Products in strict accordance with ChinaGB、HG Standard and USAPISuch as standard design, manufacturing, acceptance. The hardness of the sealing surface meets the requirements of the state and the width exceeds the national standard.

pre-sale service:

Product introduction, technical exchange, non-standard product design, troubleshooting。

Sale service:

A trustworthy contract guarantees timely delivery and keeps in touch with customers. For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" brand product quality period is from the factory12In the month, the implementation of the "three guarantees" service (return, replacement, warranty).

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions, so as to further improve product quality.

3、Respond quickly to the quality of user complaints, after-sales service personnel rushed to the scene in 24-36 hours (48 hours outside the province).

4、For after-sales service, users are required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of Qigao.

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us in advance to tell the required valve model, specification, quantity, delivery time and location, and timely transfer to the factory account according to the total 30% deposit or full payment. The rest of the payment is pending. Import before shipment to arrange delivery in time.



Order Process:

1、Customer purchase list fax to021-33872143,Or call us 021-33872141

2、Receive customer purchase list, provide valve model selection and quotation (price list)。

3、Specific agreement: delivery date, special requirements, etc.。

download Google:

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us first to tell the required valve model, specifications, quantity, delivery time and location, and press the total30%The deposit or full payment will be remitted to our factory account in time., The rest of the payment will be remitted before shipment to arrange delivery in time.。

Sale service:

Trustworthy contract, guarantee timely delivery, keep in touch with customers at any time。

For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" product quality period is from the factory12Month, practiceThree packsService (return, replacement, warranty)。

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions.,
In order to further improve product quality。

3、Respond quickly to the quality of user complaints, after-sales service personnel24-36Hours (outside the province48Hour) rushed to the scene。

4、For after-sales service, the user is required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of “Qigao”.。

statement

  1. All text, data and pictures in this article are for reference only.FS948W electric butterfly release valvePlease contact us at 4000-700-665 for details of performance, size and price.
