TYFZ gas pressure regulating valve group

TYFZ gas pressure regulating valve group
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

TYFZ type gas pressure regulating valve group is suitable for blast furnace system in ironmaking plant. By adjusting gas medium flow rate, the top pressure can be stabilized in a certain range. It is installed on the clean gas pipeline after the dust removal device (wet dust removal or dry dust removal). It is also applicable to other gas medium piping systems that require stable production through flow and pressure regulation.

Structural features and uses

The TYFZ type gas pressure regulating valve group is composed of ZAJW-1 type automatic regulating butterfly valve and constant pipe. Generally, one ZAJW-1 butterfly valve is used for automatic control by DDZ type electric unit combination instrument. The other two (or three) ZAJW-1 butterfly valves are made up of electric actuators which are controlled by manual operators on the instrument panel to adjust the flow and pressure of the system. . TYFZ type gas pressure regulating valve group is suitable for blast furnace system and other systems which need to keep stable production through flow and pressure regulation. There is no directional requirement when the valve group is installed on the horizontal pipe, but the normal through pipe should be placed below the valve group to ensure the discharge of condensate when the system temperature drops. When installing on the vertical pipe, the position of the electric actuator should be considered.

Material of main parts


零件名稱
閥體
閥板
閥桿
連接筒
大小法蘭
密封墊
材料
碳素鋼
碳素鋼
合金鋼
碳素鋼
碳素鋼
石棉橡膠


主要技術參能


閥組型號
介質溫度℃
介質壓力MPa
介質流量m3/h
閥門轉角
備注
TYFZ-10
≤350
-0.05
-30000
0-90°
-
TYFZ-30
-0.07
48000-58000
0-90°
-
TYFZ-38
-0.07
68000-85000
0-90°
-
TYFZ-65
-0.1
111000-130000
0-90°
-
TYFZ-75
-0.15
137000-157000
0-90°
-
TYFZ-90
-0.2
170000
0-90°
-
TYFZ-100
-0.2
187000
0-90°
-
TYFZ-125
-0.25
205000
0-90°
-
TYFZ-135
-0.25
250500
0-90°
-


自動調節閥配用電動裝置性能參數



DN
電動執行機構
電源電壓力、輸入信號電流
單程(90°) 啟閉時間
型號
輸出力矩
250
DKJ-210 或DKJ-210Q
100N.m
DDZ- II 型0-10mA DDZ III 型4-20mA 220V.AC
25
300
25
350
DKJ-310或DKJ-310Q
250N.m
400
25
450
600
DKJ-410或DKJ-410Q
600N.m
25
700
800
DKJ-510或DKJ-510Q
1600N.m
900
25

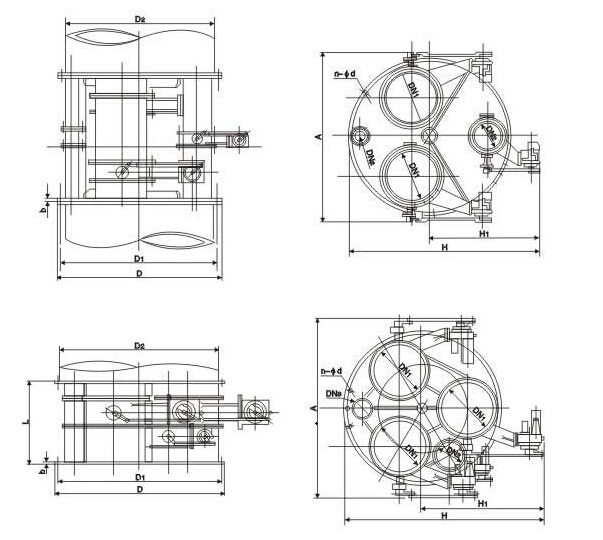

主要外形連接尺寸


閥組型號
D
D1
L
b
n-Φd
A
A1
H
H1
閥門配制
許用流量(m3/h)
重量(kg)
對應管道
TYFZ-25
1990
1930
1000
30
44-Φ30
3600
1800
2150
1150
600x2+300x1+150
55000-65000
2800
1200
TYFZ-30
1990
1930
1000
30
44-Φ30
3600
1800
2150
1150
700x2+300x1-150
65000-77000
3200
1300
TYFZ-40
1990
1930
1000
30
44-Φ30
3600
1800
2250
1250
700 χ 1+800 χ 1+350 χ+150
77000-91000
3400
1400
TYFZ-50
2190
2130
1200
30
48-Φ30
3800
1900
2600
1500
800x2+400x1+200
91000-105000
3700
1500
TYFZ-60
2305
2240
1200
30
48-Φ30
4000
2000
2800
1600
800 χ 1 +900 χ 1 +400 χ 1 +200
105000-120000
4900
1600
TYFZ-65
2190
2130
1200
30
48-Φ30
4000
2000
2800
1600
700x3+350x1+200
111000-130000
5000
1700
TYFZ-75
2305
2240
1200
30
48-Φ33
4000
2000
2800
1600
900x2+500x1+200
120000-150000
5300
1800
TYFZ-90
2405
2340
1200
30
52-Φ 33
4000
2000
2550
1350
800x3+400x1+250
137000-170000
6700
1900
TYFZ-100
2605
2540
1200
30
56-Φ33
4200
2100
3000
1700
1000x2+500x1+200
150000-190000
7000
2000


Instructions for ordering:

1. Gas production per hour (flow rate), pressure, gas relative humidity (moisture content per m3) should be indicated in the order.

2. the automatic adjustment butterfly valve input signal should be noted when ordering.

3. vertical pipe installation and explosion-proof requirements for electric actuators are specified when ordering.

The best quality, first-class service Qigao creates more value for you!

"Qigao Valve" expects to continuously improve service quality and strive for excellence. "Sincere service" is the eternal theme of "Qigao". "Qigao" strictly followsIS09001-2000 Quality system certification requirements, strict quality control, responsibility to people, to ensure the healthy operation of production, sales and service. Strengthen communication with users and provide quality products to our customers with perfection and perfect service. Hereby our factory makes the following commitments:

Product Standards:

Products in strict accordance with ChinaGB、HG Standard and USAPISuch as standard design, manufacturing, acceptance. The hardness of the sealing surface meets the requirements of the state and the width exceeds the national standard.

pre-sale service:

Product introduction, technical exchange, non-standard product design, troubleshooting。

Sale service:

A trustworthy contract guarantees timely delivery and keeps in touch with customers. For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" brand product quality period is from the factory12In the month, the implementation of the "three guarantees" service (return, replacement, warranty).

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions, so as to further improve product quality.

3、Respond quickly to the quality of user complaints, after-sales service personnel rushed to the scene in 24-36 hours (48 hours outside the province).

4、For after-sales service, users are required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of Qigao.

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us in advance to tell the required valve model, specification, quantity, delivery time and location, and timely transfer to the factory account according to the total 30% deposit or full payment. The rest of the payment is pending. Import before shipment to arrange delivery in time.



Order Process:

1、Customer purchase list fax to021-33872143,Or call us 021-33872141

2、Receive customer purchase list, provide valve model selection and quotation (price list)。

3、Specific agreement: delivery date, special requirements, etc.。

download Google:

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us first to tell the required valve model, specifications, quantity, delivery time and location, and press the total30%The deposit or full payment will be remitted to our factory account in time., The rest of the payment will be remitted before shipment to arrange delivery in time.。

Sale service:

Trustworthy contract, guarantee timely delivery, keep in touch with customers at any time。

For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" product quality period is from the factory12Month, practiceThree packsService (return, replacement, warranty)。

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions.,
In order to further improve product quality。

3、Respond quickly to the quality of user complaints, after-sales service personnel24-36Hours (outside the province48Hour) rushed to the scene。

4、For after-sales service, the user is required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of “Qigao”.。

statement

  1. All text, data and pictures in this article are for reference only.TYFZ gas pressure regulating valve groupPlease contact us at 4000-700-665 for details of performance, size and price.
  2. If there is no explanation, this article is original, reprint, please indicate the address of this article, thank you for your cooperation!
