Intelligent electro hydraulic plate inserting type double layer ash unloading va
- sell:021-32051999
- sell:021-32050777
- fax:021-66099555
Details
- Product Introduction
- Service Promise
- Ordering Process
SDYCF-I, SDCF-I Intelligent Electro-Hydraulic plug-in double-deck unloading valve is a kind of intelligent control unloading valve which is developed on the basis of flip-plate unloading valve and plug-in valve by computer program control. It can realize remote control, centralized control or on-site control, and can be connected by microcomputer. The valve is a power source of electric and electro-hydraulic push rod. It has the functions of adjustable discharging interval, automatic alarm, automatic treatment and automatic protection of motor. It also has the advantages of good wear resistance, reliable sealing, flexible opening and closing, simple operation, convenient operation, long service life and so on. . This valve is widely used in metallurgical, mining, building materials, power, chemical and other industrial production departments.
Main technical parameters
公稱壓力 | 0.05MPa | 控制方式 | 智能控制或手動操作 |
適用溫度 | -20~300℃ | 故障報警 | 自動報警,卡料自動排除 |
處理物料粒度 | 0.01~20mm | 驅動程式 | DYT型電液推桿、DT型電動推桿 |
處理物料比重 | 0.8~2.5t/mo | 閥全程動作時間 | 1-60分鐘時間可調 |
閥處理量 | 0~300t/h處理量小時,可間歇工作 |
閥門 | 插板 | 執行裝置 | 智能控制器 |
碳素結構鋼 | 16Mn | 電動(電液動)推桿 | 可編程序器和單片機處理器 |

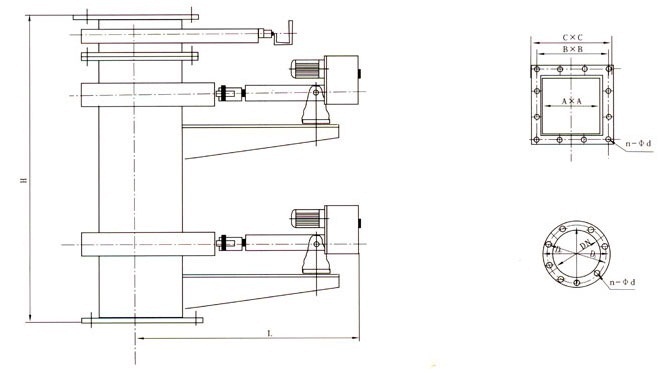

DN | D | D1 | n-φd | L | H | A×A | B×B | C×C | n-φd1 |
150 | 226 | 196 | 8-φ11 | 800 | 1000 | 150×150 | 200×200 | 230×230 | 8-φ11 |
200 | 280 | 245 | 6-φ11 | 880 | 1000 | 200×200 | 250×250 | 290×290 | 8-φ11 |
250 | 340 | 300 | 12-φ11 | 1000 | 1300 | 250×250 | 300×300 | 340×340 | 12-φ11 |
300 | 390 | 350 | 12-φ13 | 1100 | 1300 | 300×300 | 360×360 | 400×400 | 12-φ13 |
400 | 490 | 450 | 16-φ13 | 1280 | 1400 | 400×400 | 460×460 | 500×500 | 16-φ13 |
500 | 600 | 560 | 16-φ13 | 1500 | 1400 | 480×480 | 540×540 | 580×580 | 16-φ13 |
600 | 700 | 660 | 20-φ15 | 1700 | 1600 | 500×500 | 560×260 | 600×600 | 20-φ15 |
700 | 800 | 760 | 20-φ15 | 1920 | 1600 | 660×660 | 740×740 | 780×780 | 20-φ15 |
