Pneumatic regulating butterfly valve
- sell:021-32051999
- sell:021-32050777
- fax:021-66099555
Details
- Product Introduction
- Service Promise
- Ordering Process
ZMAW pneumatic membrane control butterfly valve / ZSRW, ZSCW pneumatic piston control butterfly valve input control signal (4-20mADC or 1-5VDC) air source can control operation, simple and compact structure, easy to manufacture large diameter, with self-cleaning effect, small resistance coefficient, large flow capacity. It is suitable for the regulation of suspended solids and strong and turbid slurry fluids. Clean medium, can choose the valve plate plus soft seal (rubber ring, tetrafluoro ring) to reduce leakage (up to 0.01%), high temperature and high pressure can choose the three eccentric hard seal valve body. The order must be marked.
Main technical parameters of pneumatic regulating butterfly valve
Nominal path mm | 50 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 800 | 900 | 1000 | |
Rated discharge coefficient Kv | 85 | 220 | 340 | 530 | 770 | 1360 | 2130 | 3060 | 4160 | 5450 | 6900 | 8500 | 12200 | 16600 | 21700 | 27540 | 34000 | |
Nominal pressure MPa | 0.6 | |||||||||||||||||
Rated turning angle ° | 70 | |||||||||||||||||
Signal pressure KPa | 20~100 | |||||||||||||||||
Flow characteristics | 近似等百分比 | |||||||||||||||||
Medium temperature ℃ | -20~200(常溫) ; -40~450(中溫) ; -40~600(高溫) | |||||||||||||||||
Nozzle flange | 按JB78-59對夾式法蘭連接 | |||||||||||||||||
Signal connection screw hole | M16×1.5 | |||||||||||||||||
Matching actuator | Thin film | ZMA-2 | ZMA-3 | ZMA-4 | ZMA-5 | |||||||||||||
Piston type | ZSC-45 | |||||||||||||||||
body material | ZG230-450;1Cr18Ni9; ZG1Cr18Ni9Ti、ZGOCr18Ni12Mo2Ti | |||||||||||||||||
Appendable appendage | Handwheel, locator, air filter and pressure reducer. |
Part name | Material Science | Temperature range C |
Body valve plate | ZG230-450 | -40-450 |
ZG1Cr18Ni9Ti | -250-550 | |
ZG0Cr18Ni12Mo2Ti |
Note: This table is the limit service temperature of all kinds of materials. In actual selection, the lowest and highest service temperature of materials should be determined according to the medium temperature range of the products. The lowest service temperature should not be lower than the lower limit of the medium temperature range, and the highest service temperature should not be higher than the upper limit of the medium temperature range.
Main technical parameters of pneumatic regulating butterfly valve thin film actuator
Model | ZMA-2 | ZMA-3 | ZMA-4 | ZMA-5 |
effective area cm2 | 280 | 400 | 630 | 1000 |
Trip mm | 16 | 25 | 40 | 60 |
Spring range KPa | 20~100 ; 40~200 ; 20~60 ; 60~100 |
Model | Piston diameter mm | effective area cm2 | Maximum stroke mm | Maximum operating pressure KPa | Maximum output force N |
ZSC-45 | 250 | 484 | 60 | 500 | 21800 |
Executing agency | Thin film actuator | Piston actuator | |||||
Category | Without locator | Belt locator | Belt locator | ||||
Spring range KPa | |||||||
20~100 40~200 | 20~60 60~100 | ||||||
Project | Basic error% | ±8 | - | ±2.0 | ±2.0 | ||
Difference% | 6 | - | 2.0 | 2.0 | |||
Dead zone% | 5 | - | 0.8 | 0.8 | |||
Always point deviation%. | Air opening | Starting point | ±4.0 | ±4.0 | ±2.0 | ± | |
End | ±8 | ±8 | |||||
Gas pass | Starting point | ±8 | ±8 | ||||
End | ±4.0 | ±4.0 | |||||
Rated angle deviation% | ±2.5 | ||||||
Allowable leakage 1/h | Rated capacity of 2 * 10-2 * valves |
Matching actuator type | ZMA-2 | ZMA-3 | ZMA-4 | ZMA-5 | ZSC-45 | ||||||
0° | 70° | 0° | 70° | 0° | 70° | 0° | 70° | 0° | 70° | ||
Nominal path mm | 50 | 0.6 | 0.097 (0.22) | ||||||||
80 | 0.6 | 0.038 (0.086) | |||||||||
100 | 0.556 (0.6) | 0.0196 (0.0445) | |||||||||
125 | 0.6 | 0.0250 (0.0542) | |||||||||
150 | 0.444 (0.6) | 0.0150 (0.0314) | |||||||||
200 | 0.185 (0.407) | 0.00587 (0.0129) | |||||||||
250 | 0.331 (0.6) | 0.00845 (0.0175) | |||||||||
300 | 0.181 (0.385) | 0.00461 (0.00983) | |||||||||
350 | 0.133 (0.284) | 0.00292 (0.00622) | |||||||||
400 | 0.216 (0.45) | 0.00485 (0.0101) | |||||||||
450 | 0.171 (0.356) | 0.00341 (0.00741) | |||||||||
500 | 0.139 (0.289) | 0.0025 (0.0052) | |||||||||
600 | 0.6 | 0.019 | |||||||||
700 | 0.6 | 0.0119 | |||||||||
800 | 0.442 | 0.00795 | |||||||||
900 | 0.339 | 0.00599 | |||||||||
1000 | 0.236 | 0.00403 |
Note: the values in brackets are allowable pressure differences with positioners.

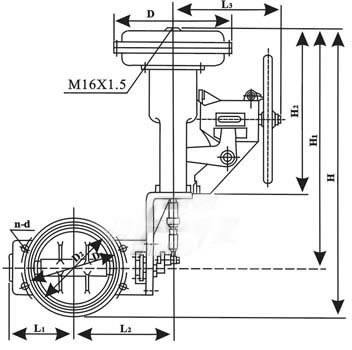

Main size of pneumatic regulating butterfly valve
ZMAW pneumatic thin film adjusting butterfly valve
公稱通徑 | D1 | D2 | L1 | L2 | n-d | H | H1 | H2 | D | L3 | 法蘭端面距 |
50 | 110 | 92 | 200 | 4-14 | 637 | 582 | 382 | 280 | 278 | 60 | |
80 | 150 | 125 | 92 | 200 | 4-18 | 644 | 582 | 382 | 280 | 278 | |
100 | 175 | 145 | 102 | 210 | 654 | 280 | 278 | ||||
125 | 200 | 175 | 117 | 234 | 8-18 | 723 | 636 | 436 | 325 | 278 | |
150 | 225 | 200 | 130 | 247 | 736 | 325 | 278 | ||||
200 | 280 | 255 | 172 | 287 | 763 | 325 | 278 | 70 | |||
250 | 335 | 310 | 197 | 327 | 12-18 | 1008 | 853 | 615 | 410 | 376 | |
300 | 395 | 362 | 227 | 351 | 12-23 | 1034 | 410 | 376 | 80 | ||
350 | 445 | 412 | 252 | 376 | 1059 | 410 | 376 | ||||
400 | 495 | 462 | 296 | 432 | 16-23 | 1238 | 1007 | 720 | 495 | 376 | 100 |
450 | 550 | 518 | 321 | 459 | 1266 | 495 | 376 | ||||
500 | 600 | 568 | 346 | 484 | 1291 | 495 | 376 | ||||
600 | 705 | 755 | 480 | 565 | 20-25 | 1486 | 1109 | 796 | 180 | 150 | |
700 | 810 | 860 | 530 | 615 | 24-25 | 1539 | 180 | ||||
800 | 920 | 975 | 595 | 675 | 24-30 | 1596 | 180 | 200 | |||
900 | 1020 | 1075 | 685 | 770 | 24-30 | 1661 | 1124 | 180 | |||
1000 | 1120 | 1175 | 735 | 810 | 28-30 | 1711 | 1124 | 180 | 200 |

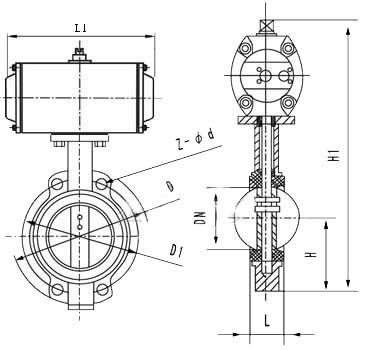

Nominal pathDN | Structure length (standard value) | Connection size | |||||||||
L | H | H1 | PN0.6MPa | PN1.0MPa | |||||||
mm | inch | Flanged | Pair clip | D | D1 | Z-d | D | D2 | Z-d | ||
50 | 2 | 108 | 43 | 100 | 400 | 140 | 110 | 4--14 | 165 | 125 | 4--18 |
65 | 21/2 | 112 | 46 | 115 | 420 | 160 | 130 | 4--14 | 185 | 145 | 4--18 |
80 | 3 | 114 | 49 | 120 | 138 | 190 | 150 | 4--18 | 200 | 160 | 8-18 |
100 | 4 | 127 | 56 | 130 | 524 | 210 | 170 | 4--18 | 220 | 180 | 8-18 |
125 | 5 | 140 | 64 | 150 | 570 | 240 | 200 | 8-18 | 250 | 210 | 8-18 |
150 | 6 | 140 | 70 | 170 | 743 | 265 | 225 | 8-18 | 285 | 240 | 8-22 |
200 | 8 | 152 | 76 | 200 | 767 | 320 | 280 | 8-18 | 340 | 295 | 8-22 |
250 | 10 | 165 | 76 | 235 | 790 | 375 | 335 | 12-18 | 395 | 350 | 12-22 |
300 | 12 | 178 | 83 | 300 | 890 | 440 | 395 | 12-22 | 445 | 400 | 12-22 |
350 | 14 | 190 | 92 | 325 | 954 | 490 | 445 | 16-22 | 505 | 460 | 16-22 |
400 | 16 | 216 | 102 | 355 | 1070 | 540 | 495 | 16-22 | 565 | 515 | 16-26 |
450 | 18 | 222 | 114 | 390 | 1140 | 595 | 550 | 20-22 | 615 | 565 | 20-26 |
500 | 20 | 229 | 127 | 420 | 1200 | 645 | 600 | 20-26 | 670 | 620 | 20-26 |
600 | 24 | 267 | 154 | 490 | 1380 | 755 | 705 | 24--26 | 780 | 725 | 20-30 |
700 | 28 | 292 | 165 | 550 | 1580 | 860 | 810 | 24--30 | 895 | 840 | 24--30 |
800 | 32 | 318 | 190 | 640 | 1760 | 975 | 920 | 24--30 | 1015 | 950 | 24--33 |
900 | 36 | 330 | 203 | 710 | 1075 | 1020 | 24--30 | 1115 | 1050 | 28-33 | |
1000 | 40 | 410 | 216 | 770 | 1175 | 1120 | 28--30 | 1230 | 1160 | 28-36 | |
1200 | 48 | 470 | 254 | 890 | 1405 | 1340 | 32-33 | 1450 | 1380 | 32-39 |
