Sanitary butterfly valve

Sanitary butterfly valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

D81F Hygienic Butterfly Valve / D681F Pneumatic Hygienic Butterfly Valve / D981F Electric Hygienic Butterfly Valve uses standard electronic polishing, smooth surface to ensure clean, no media storage area, no potential pollution. Hygienic butterfly valve is a kind of quick disassembly valve, which makes the valve open and maintain quickly and easily, and shortens the shutdown time of the process. Hygienic butterfly valve is widely used in food, pharmaceutical, cosmetics, clean steam, liquor, beverage, biochemical industrial process control occasions. The sanitary butterfly valve has the advantages of compact structure, convenient assembly and disassembly.


1, the design is novel, reasonable, unique in structure, light in weight, quick in opening and closing.


2, the operation torque is small, easy to operate, labor-saving and dexterous.


3, can be installed at any location, easy maintenance.


4. Sealing materials are characterized by aging resistance, corrosion resistance and long service life.

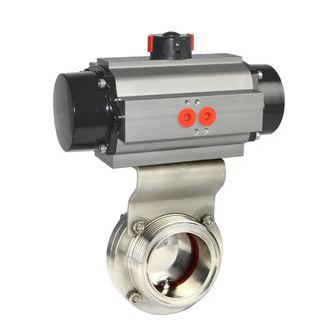

Sanitary pneumatic butterfly valveSanitary electric butterfly valve

Sanitary butterfly valves adopt standards


Design standard: GB/T2238-1989


Flange joint dimensions: GB/T9113.1-2000; GB/T9115.1-2000; JB78


Structure length: GB/T12221-1989


Pressure test: GB/T13927-1992; JB/T9092-1999


Main technical parameters of sanitary butterfly valves


Nominal path
DN(mm)
15~150
Nominal pressure
PN(MPa)
0.6
1.0
1.6
Test pressure
strength test
0.9
1.5
2.4
Seal test
0.66
1.1
1.76
Airtight test
0.6
0.6
0.6
Applicable medium
Air, water, steam, oil and so on.
Driving form
Manual, worm and worm gear drive, gas drive and electric drive.
Connection mode
Quick mounting, clamp, external thread, welding type, etc.


Hygienic grade butterfly valve main parts material


Part name
Material Science
valve body
304、316、316L
Disc
304、316、316L
Seal ring
Silicone rubber, fluorine rubber and polytetrafluoroethylene
Stem
304、316、316L
filler
Silicone rubber, fluorine rubber and polytetrafluoroethylene


Selection and application temperature of hygienic butterfly valve sealing material


Variety of materials
Teflon
silicon rubber
Fluorine rubber
Natural rubber
nylon
English abbreviated
PTFE
SI
VITON
NR
PA
Model code
F或XC、JC
XD或JD
XE或JE
X1
N
Maximum temperature resistance
232℃
250℃
204℃
85℃
93℃
Minimum temperature tolerance
-268℃
-70℃
-23℃
-20℃
-73℃
Applicable working temperature
-30~+150℃
-70~+150℃
-23~+60℃
-20~+85℃
-30~+93℃

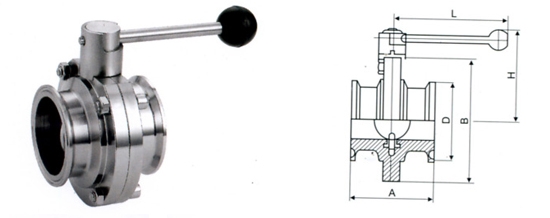

Main dimensions of sanitary butterfly valves


Specifications (ISO)
A
B
D
L
H
Kg
20
50
78
19.05
130
82
1.2
25
50
78
25.4
130
82
1.2
32
50
78
31.8
130
82
1.05
38
50
86
38.1
130
86
1.2
51
52
102
50.8
140
96
1.7
63
56
115
63.5
150
103
2.1
76
56
128
76.1
150
110
2.4
89
60
139
88.9
170
116
2.7
102
64
154
101.6
170
122
3.05
108
64
159
108
170
126
3.15
133
80
138
133
190
138
5.2
159
90
215
159
190
153
9.2
