D341X flange butterfly valve
- sell:021-32051999
- sell:021-32050777
- fax:021-66099555
Details
- Product Introduction
- Service Promise
- Ordering Process
D41J Flange Butterfly Valve/D641J Pneumatic Butterfly Valve/D941J Electric Butterfly Valve plays a role in regulating flow or intercepting medium in gas and liquid pipelines. Flange-lined Butterfly Valve has the characteristics of strong corrosion resistance, good stability and reliability. Flange-lined Butterfly Valve also has the advantages of strong sealing reliability, strong anticorrosion ability and small operating torque. Flange-lined rubber butterfly valve is widely used in food, medicine, chemical industry, petroleum, electric power, light textile, paper and other industries.
Flange butterfly valves adopt standard
Flange connection dimension GB4216.4-84; GB9115.8-88
Structure length GB12221-89
Pressure test GB/T13927-92; ZBJ16006-90
Main technical parameters of flange butterfly valve
DN(mm) | 50~2000 | ||
PN(MPa) | 0.6 | 1.0 | |
Ps(MPa) | strength test | 0.9 | 1.5 |
Seal test | 0.66 | 1.1 | |
Applicable medium | Water, steam, oil, sea water and acids. | ||
Applicable temperature | -40℃~200℃ |
Name | Material Science |
valve body | WCB、ZG1Cr18Ni9Ti、ZG1Cr18Ni12Mo2Ti HT250 |
Valve plate | WCB、ZG1Cr18Ni9Ti、ZG1Cr18Ni12Mo2Ti HT250 |
Stem | 2Cr13、1Cr18Ni9Ti、1Cr18Ni12Mo2Ti |
Seal ring | CR、NBR、EPDM、FPM |
filler | NBR, flexible graphite V rubber pad. |

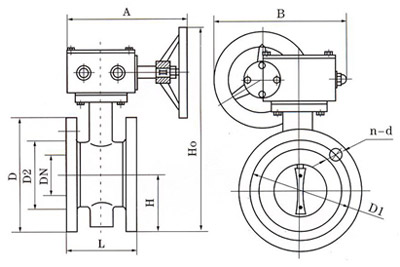

Path(DN) | L | D1 | D | Z-Φd | H | H0 | A | B | D0 | Wt/kg |
50 | 108 | 125 | 165 | 4-18 | 82.5 | 443 | 125 | 125 | 80 | 51 |
65 | 112 | 145 | 185 | 4-18 | 92.5 | 463 | 125 | 125 | 80 | 62 |
80 | 114 | 160 | 200 | 8-18 | 100 | 483 | 125 | 125 | 80 | 73.5 |
100 | 127 | 180 | 220 | 8-18 | 110 | 498 | 125 | 125 | 80 | 87 |
125 | 140 | 210 | 250 | 8-18 | 125 | 682 | 325 | 245 | 150 | 98 |
150 | 140 | 240 | 285 | 8-22 | 142.5 | 736 | 325 | 245 | 150 | 102 |
200 | 152 | 295 | 340 | 8-22 | 170 | 800 | 325 | 245 | 150 | 150 |
250 | 165 | 350 | 395 | 12-22 | 192.5 | 895 | 363 | 313 | 200 | 170 |
300 | 178 | 400 | 445 | 12-22 | 222.5 | 956 | 363 | 313 | 200 | 220 |
350 | 190 | 460 | 505 | 16-22 | 252.5 | 1029 | 363 | 313 | 250 | 350 |
400 | 216 | 515 | 565 | 16-26 | 282.5 | 1103 | 363 | 313 | 250 | 430 |
450 | 222 | 565 | 615 | 20-26 | 307.5 | 1280 | 465 | 439 | 300 | 550 |
500 | 229 | 620 | 670 | 20-26 | 335 | 1186 | 546 | 431 | 360 | 580 |
600 | 267 | 725 | 780 | 20-30 | 390 | 1321 | 546 | 556 | 360 | 850 |
700 | 430 | 840 | 895 | 24-30 | 420 | 1431 | 546 | 556 | 360 | 950 |
800 | 470 | 950 | 1015 | 24-33 | 477.5 | 1542 | 546 | 556 | 360 | 1150 |
900 | 510 | 1050 | 1115 | 28-33 | 1117.5 | 1800 | 617 | 706 | 360 | 1750 |
1000 | 550 | 1160 | 1230 | 28-36 | 582.5 | 2363 | 632 | 706 | 360 | 2100 |
1200 | 630 | 1380 | 1455 | 32-39 | 692.5 | 2583 | 632 | 706 | 360 | 2580 |
1400 | 710 | 1590 | 1675 | 36-42 | ||||||
1600 | 790 | 1820 | 1915 | 40-48 | ||||||
1800 | 870 | 2020 | 2115 | 44-48 | ||||||
2000 | 950 | 2230 | 2325 | 48-48 |
Notes: 1. The sealing test pressure DN32~DN800 is 1.0 Mpa, DN900~DN1000 is 0.6 Mpa, DN1200~DN2000 is 0.25 Mpa.
2. if the working pressure exceeds 1.0Mpa, the three eccentric butterfly valve is recommended.
3. The connection sizes of the above butterfly valves are all manufactured according to 1.0 Mpa standard, such as valve plate rubber lining and other special needs, should be noted when ordering.
