H72H pair of clamped vertical check valves

H72H pair of clamped vertical check valves
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

H72H-160 and H72H-320 vertical check valves are automatic valves that automatically open and close the discs depending on the flow of the medium itself and prevent the reverse flow of the medium.


Main performance parameters


型號
H72H-160
H72H-320
工作壓力(MPa)
16.0
32.0
適用溫度(℃)
≤200
適用介質
氮氫混合氣、氨液、銅氨液、堿液等
材料
法蘭、閥蓋
碳鋼
閥瓣、閥座
不銹鋼
彈簧
硅錳鋼
O形圈
丁腈橡膠
閥體、雙頭螺栓
鉻鋼
螺母
碳鋼

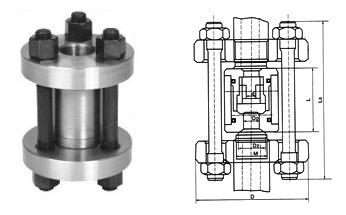

Main dimensions


H72H-160 pair of clamped vertical check valves

公稱通徑
尺寸(mm)
重量
(kg)
D
D1
d
M
L
L1
10
95
42
10
M24
60
155
3.4
15
95
42
12
M24
60
158
4.1
25
105
50
15
M33
65
163
6.9
32
115
62
25
M42
80
180
8.0
40
165
88
32
M52
90
230
15
50
165
88
39
M64
115
265
27
65
200
116
53
M80
140
315
49
80
225
138
60
M100
160
360
88
100
260
160
76
M125
180
420
91
125
300
195
90
M155
200
460
115
150
330
212
120
M175
220
500
145
200
400
250
176
M215
240
570
160
H72H-320 pair of clamped vertical check valves
公稱通徑
DN(mm)
尺寸(mm)
重量
(kg)
D
D1
d
M
L
L1
10
95
42
10
M24
60
155
3.4
15
105
50
12
M33
65
158
4.5
25
115
62
23
M42
80
180
7.3
32
135
70
29
M48
90
200
8.7
40
165
88
34
M52
115
255
17
50
200
116
53
M80
140
300
30
65
225
138
60
M100
160
345
56
80
260
160
68
M125
180
410
92
100
300
195
85
M155
200
470
109
125
330
212
120
M175
220
510
135
150
400
250
135
M215
240
570
160
200
480
320
176
M265
280
670
180

The best quality, first-class service Qigao creates more value for you!

"Qigao Valve" expects to continuously improve service quality and strive for excellence. "Sincere service" is the eternal theme of "Qigao". "Qigao" strictly followsIS09001-2000 Quality system certification requirements, strict quality control, responsibility to people, to ensure the healthy operation of production, sales and service. Strengthen communication with users and provide quality products to our customers with perfection and perfect service. Hereby our factory makes the following commitments:

Product Standards:

Products in strict accordance with ChinaGB、HG Standard and USAPISuch as standard design, manufacturing, acceptance. The hardness of the sealing surface meets the requirements of the state and the width exceeds the national standard.

pre-sale service:

Product introduction, technical exchange, non-standard product design, troubleshooting。

Sale service:

A trustworthy contract guarantees timely delivery and keeps in touch with customers. For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" brand product quality period is from the factory12In the month, the implementation of the "three guarantees" service (return, replacement, warranty).

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions, so as to further improve product quality.

3、Respond quickly to the quality of user complaints, after-sales service personnel rushed to the scene in 24-36 hours (48 hours outside the province).

4、For after-sales service, users are required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of Qigao.

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us in advance to tell the required valve model, specification, quantity, delivery time and location, and timely transfer to the factory account according to the total 30% deposit or full payment. The rest of the payment is pending. Import before shipment to arrange delivery in time.



Order Process:

1、Customer purchase list fax to021-33872143,Or call us 021-33872141

2、Receive customer purchase list, provide valve model selection and quotation (price list)。

3、Specific agreement: delivery date, special requirements, etc.。
