H42H/W vertical check valve

H42H/W vertical check valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

H42H, H42W vertical check valves are normally closed, due to the pressure of the inlet end of the pipeline, and overcome the spring resistance to open the valve. When the inlet pressure is lower than the outlet, the spring pushes the spool to the seat and closes the valve, preventing the medium from flowing back, so it has a check effect.


Since the valve supports the spool with spring, it can be installed vertically or horizontally.


Application specification


設計與制造
GB/T12235
連接端尺寸
結構長度
GB/T12221
法蘭尺寸
JB/T79
檢驗與試驗
JB/T9092
材料
碳鋼
GB/T12229
不銹鋼
GB/T12230
合金鋼
Q/ZB66
標志
GB/T12220
供貨
JB/T7928


Performance specification


型號
公稱
壓力
試驗壓力
工作溫度(℃)
強度
(水)Mpa
密封
(水)空氣(Mpa)
低壓密封
(空氣)Mpa
H42W-16
1.6
2.4
1.8
0.6
≤200
H42W-25
2.5
3.8
2.8
0.6
≤200
H42W-40
4.0
6.0
4.4
0.6
≤200

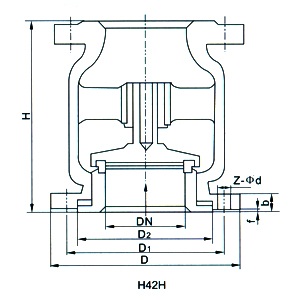

Main dimensions


型號
公稱通徑 DN
尺寸(mm)
L
D
D1
D2
H
b
Z-Φd
H42H/W-16
15
130
95
65
45
77
14
4-14
20
150
105
75
55
77
14
4-14
25
160
115
85
65
80
16
4-14
32
180
135
100
78
85
16
4-18
40
200
145
110
85
95
16
4-18
50
230
160
125
100
105
16
4-18
65
290
180
145
120
120
18
4-18
80
310
195
160
135
130
20
8-18
100
350
215
180
155
140
20
8-18
125
400
245
210
185
155
22
8-18
150
480
280
240
210
180
24
8-23
200
600
335
295
265
215
26
12-23
H42H/W-25
15
130
95
65
45
77
16
4-14
20
150
105
75
55
80
16
4-14
25
160
115
85
65
85
16
4-14
32
180
135
100
78
95
18
8-18
40
200
145
110
85
105
18
8-18
50
230
160
125
100
120
20
8-18
65
290
180
145
120
130
212
8-18
80
310
195
160
135
140
22
8-18
100
350
230
190
160
155
24
8-23
125
400
270
220
188
180
28
8-25
150
480
300
250
218
215
30
8-25
200
600
360
310
278
973
34
12-25


The best quality, first-class service Qigao creates more value for you!

"Qigao Valve" expects to continuously improve service quality and strive for excellence. "Sincere service" is the eternal theme of "Qigao". "Qigao" strictly followsIS09001-2000 Quality system certification requirements, strict quality control, responsibility to people, to ensure the healthy operation of production, sales and service. Strengthen communication with users and provide quality products to our customers with perfection and perfect service. Hereby our factory makes the following commitments:

Product Standards:

Products in strict accordance with ChinaGB、HG Standard and USAPISuch as standard design, manufacturing, acceptance. The hardness of the sealing surface meets the requirements of the state and the width exceeds the national standard.

pre-sale service:

Product introduction, technical exchange, non-standard product design, troubleshooting。

Sale service:

A trustworthy contract guarantees timely delivery and keeps in touch with customers. For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" brand product quality period is from the factory12In the month, the implementation of the "three guarantees" service (return, replacement, warranty).

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions, so as to further improve product quality.

3、Respond quickly to the quality of user complaints, after-sales service personnel rushed to the scene in 24-36 hours (48 hours outside the province).

4、For after-sales service, users are required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of Qigao.

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us in advance to tell the required valve model, specification, quantity, delivery time and location, and timely transfer to the factory account according to the total 30% deposit or full payment. The rest of the payment is pending. Import before shipment to arrange delivery in time.



Order Process:

1、Customer purchase list fax to021-33872143,Or call us 021-33872141

2、Receive customer purchase list, provide valve model selection and quotation (price list)。

3、Specific agreement: delivery date, special requirements, etc.。
