DRVZ (H42X) silent check valve

DRVZ (H42X) silent check valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

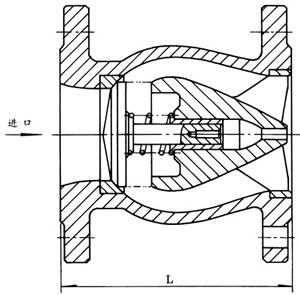

DRVZ and H42X silent check valves are composed of body, seat, fluid guide, disc, Bush and spring. Internal runner is streamlined design, pressure loss is small, disc opening and closing stroke is very short, stop pump can be quickly closed, prevent huge water hammer sound, form silent effect. The valve is mainly used for water supply, drainage, fire protection, HVAC system, can be installed at the outlet of the pump to prevent media backflow and water hammer damage to the pump.


Main technical parameters


公稱壓力
1.0
1.6
2.5
MAX工作壓力
1.0
1.6
2.5
密封試驗壓力
1.1
1.76
2.75
殼體試驗壓力
1.5
2.4
3.75
適用介質
介質溫度
X<80℃, T≤150℃, H≤200℃


Material of main parts


零件名稱
材料
閥體、導流體
鑄鐵、鑄鋼
閥座、軸瓦、閥瓣、軸
青銅或不銹鋼
彈簧
不銹鋼


Main dimensions


公稱通徑
L
50
120
65
150
80
180
100
240
125
300
150
350
200
450
250
500
300
550
350
572
400
600
450
650
500
700


Flange connection size: Iron valve according to GB 4216.4 (5) - 84 standard, steel valve according to GB / T9113.1-2000 (RF) standard.
