GZW- I deflagration flame arrester
- sell：021-32051999
- sell：021-32050777
- fax：021-66099555
Details
- Product Introduction
- Service Promise
- Ordering Process
GZW- I deflagration type flame arrester flammable gas pipeline flame arrester is a new product of upgrading.
The performance of the flame arrester fully conforms to the requirements of GB13347-92 "Fire retardant performance and test method of LPG pipeline flame arrester". Flame arrester
The structure is reasonable, the fire retardant layer is made of stainless steel, corrosion resistant and easy to clean. The shell is made of stainless steel, carbon steel and cast steel, which can meet the needs of various process pipelines.
Main uses
1. Pipeline conveying combustible gas.
2. Torch system
3. Oil and gas recovery system
4. Pipe network of heating furnace fuel gas.
5. Gas purification Tonghua system
6. Gas analysis system
7, coal mine gas drainage system. The main performance is 1. The flame arrester has been tested continuously for 13 times with subsonic flame, and it can prevent flame from passing every time.
8. Water pressure test 2.4MPa no leakage.

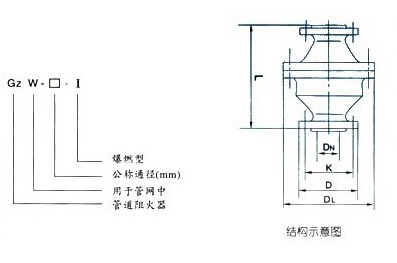

型號 | 口徑DN （mm） | PN (MPa) | 外形尺寸（mm） | 螺栓 | ||||
K | D | DL | L | 數量 | 螺紋 | |||
GZW-20 | DN20 | 1.6 | 75 | 105 | 195 | 200 | 4 | M12 |
GZW-25 | DN25 | 85 | 115 | 195 | 200 | 4 | M12 | |
GZW-40 | DN40 | 110 | 150 | 245 | 240 | 4 | M16 | |
GZW-50 | DN50 | 125 | 165 | 245 | 240 | 4 | M16 | |
GZW-80 | DN80 | 160 | 200 | 280 | 250 | 8 | M16 | |
GZW-100 | DN100 | 180 | 220 | 335 | 260 | 8 | M16 | |
GZW-150 | DN150 | 240 | 285 | 460 | 360 | 8 | M20 | |
GZW-200 | DN200 | 295 | 340 | 520 | 420 | 12 | M20 | |
GZW-250 | DN250 | 355 | 405 | 580 | 430 | 12 | M24 | |
GZW-300 | DN300 | 410 | 460 | 705 | 450 | 12 | M24 | |
GZW-600 | DN600 | 770 | 840 | 1120 | 580 | 20 | M33 | |
Maintenance and repair
In order to ensure the performance of the fire arrester to achieve the purpose of safe use, the fire arrester should be regularly checked and maintained.
1. The flame arrester is checked every half a year to check whether the blockage, deformation, corrosion and so on.
2. Fire retardant core found to be blocked should be cleaned to ensure that every hole in the core is unblocked, and fire retardant layer for deformation and corrosion should be replaced.
3. When re installing the core of the fire retardant layer, ensure that the joint surface is tight and not leak.
