FPB natural gas fire arrester
- sell：021-32051999
- sell：021-32050777
- fax：021-66099555
Details
- Product Introduction
- Service Promise
- Ordering Process
The FPB natural gas flame retardant is suitable for installing in the pipeline network for transporting combustible gases such as heating furnace fuel gas, natural gas, petroleum liquefied gas, coal mine gas discharge, also suitable for civil gas pipeline, preventing the flame from converse propagation in the pipeline under abnormal conditions, in order to avoid catastrophic accidents.
Structural characteristics
Natural gas flame arresters are designed and manufactured by utilizing the principle that the gap between metal corrugated plates can quench the subsonic or supersonic flame propagating in the pipeline.

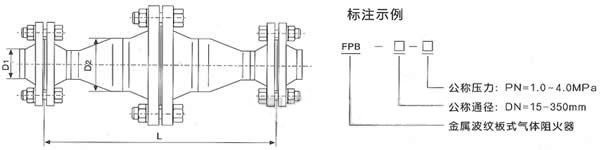

型號 | 公稱直徑 DN | D1 | D2 | L | |||
PN1.0MPa | PN1.6MPa | PN2.5MPa | PN4.0MPa | ||||
FPB-15 | 15 | 18×3 | 57×3.5 | 330 | 330 | 330 | 330 |
FPB-20 | 20 | 25×3 | 57×3.5 | 330 | 330 | 340 | 340 |
FPB-25 | 25 | 32×3.5 | 73×4 | 365 | 365 | 375 | 375 |
FPB-32 | 32 | 38×3.5 | 73×4 | 375 | 375 | 390 | 390 |
FPB-40 | 40 | 45×3.5 | 89×4 | 375 | 375 | 405 | 410 |
FPB-50 | 50 | 57×3.5 | 108×4 | 420 | 420 | 445 | 465 |
FPB-65 | 65 | 73×4 | 133×4.5 | 485 | 485 | 515 | 520 |
FPB-80 | 80 | 89×4 | 159×4.5 | 505 | 505 | 560 | 560 |
FPB-100 | 100 | 108×4 | 219×6 | 555 | 555 | 600 | 645 |
FPB-125 | 125 | 133×4.5 | 273×8 | 615 | 615 | 670 | 720 |
FPB-150 | 150 | 159×4.5 | 325×8 | 665 | 665 | 735 | 800 |
FPB-200 | 200 | 219×6 | 377×9 | 940 | 940 | 1015 | 1100 |
FPB-250 | 250 | 273×8 | 480×10 | 1030 | 1030 | 1150 | 1265 |
FPB-300 | 300 | 325×8 | 529×10 | 1295 | 1295 | 1430 | 1545 |
FPB-350 | 350 | 377×9 | 630×12 | 1300 | 1300 | 1430 | 1545 |
Note:
1. The connection flange of FPB type natural gas flame arrester is designed and manufactured according to HG20595-97 butt welded steel pipe flange with concave and convex surface and neck. Users need to choose other standard connection flange. Please specify in the order.
2. For gas arresters with PN > 4.0MPa, our factory can also be designed and manufactured.
The best quality, first-class service Qigao creates more value for you!
"Qigao Valve" expects to continuously improve service quality and strive for excellence. "Sincere service" is the eternal theme of "Qigao". "Qigao" strictly followsIS09001-2000 Quality system certification requirements, strict quality control, responsibility to people, to ensure the healthy operation of production, sales and service. Strengthen communication with users and provide quality products to our customers with perfection and perfect service. Hereby our factory makes the following commitments:
Product Standards：
Products in strict accordance with ChinaGB、HG Standard and USAPISuch as standard design, manufacturing, acceptance. The hardness of the sealing surface meets the requirements of the state and the width exceeds the national standard.
pre-sale service：
Product introduction, technical exchange, non-standard product design, troubleshooting。
Sale service：
A trustworthy contract guarantees timely delivery and keeps in touch with customers. For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.
After sales service：
1、"Qigao" brand product quality period is from the factory12In the month, the implementation of the "three guarantees" service (return, replacement, warranty).
2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions, so as to further improve product quality.
3、Respond quickly to the quality of user complaints, after-sales service personnel rushed to the scene in 24-36 hours (48 hours outside the province).
4、For after-sales service, users are required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of Qigao.
1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.：
a、Structure length；
b、Connection Type；
c、Nominal diameter, full diameter, reduced diameter, pipe size;
d、Operating medium and temperature, pressure range；
e、Tests, inspection standards and other requirements
2、The factory can configure various types of driving devices according to customer's specific requirements.。
3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.
4、For futures and order customers, please call us in advance to tell the required valve model, specification, quantity, delivery time and location, and timely transfer to the factory account according to the total 30% deposit or full payment. The rest of the payment is pending. Import before shipment to arrange delivery in time.
Order Process：
1、Customer purchase list fax to021-33872143，Or call us 021-33872141
2、Receive customer purchase list, provide valve model selection and quotation (price list)。
3、Specific agreement: delivery date, special requirements, etc.。
download Google：
1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.：
|
|||||
|
|||||
2、The factory can configure various types of driving devices according to customer's specific requirements.。
|
|||||
3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.
|
|||||
4、For futures and order customers, please call us first to tell the required valve model, specifications, quantity, delivery time and location, and press the total30%The deposit or full payment will be remitted to our factory account in time.， The rest of the payment will be remitted before shipment to arrange delivery in time.。
|
Sale service：
Trustworthy contract, guarantee timely delivery, keep in touch with customers at any time。
For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.
After sales service：
1、"Qigao" product quality period is from the factory12Month, practice“Three packs”Service (return, replacement, warranty)。
2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions.，
In order to further improve product quality。
3、Respond quickly to the quality of user complaints, after-sales service personnel24-36Hours (outside the province48Hour) rushed to the scene。
4、For after-sales service, the user is required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of “Qigao”.。
