ZSPQ pneumatic piston quick shut-off valve
- sell:021-32051999
- sell:021-32050777
- fax:021-66099555
Details
- Product Introduction
- Service Promise
- Ordering Process
The ZSPQ pneumatic piston shut-off valve is composed of a cutting mechanism and a pneumatic piston actuator. The cut-off mechanism is formed by a straight-through single seat, DN20 valve core is single-directional, DN25-200 valve core is double-directional. It has the characteristics of simple structure, convenient operation, reliable use and quick opening and closing. Mainly used in impurity-free, non-particle liquid, gas medium, the requirements of fast and tight closure, rapid discharge of the automatic control system.
The product conforms to GB/T4213-92.
Pneumatic piston shut-off valve main parts material
零件名稱 | 材料 |
閥體、閥蓋 | ZG270-500、ZG1Cr18Ni9Ti |
閥桿、閥芯 | 1Cr18Ni9 |
密封填料 | V型聚四氟乙烯 |
密封墊 | 1Cr18Ni9夾石棉板 |
蝸桿 | 45 |
O型密封圈 | 耐油橡膠 |
壓縮彈簧 | 60Si2Mn |
支架 | HT270 |
蝸輪箱、蝸輪、氣缸、軸承蓋、活塞 | HT200 |
推桿 | 2Cr13 |
類別 | 軟密封 | 硬密封 | ||
常溫型 | 中溫型 | 高溫型 | 低溫型 | |
型號 | ZSPQ-40 | ZSPQ-40G | ZSPQ-40G | ZSPQ-40D |
規格 | DN20~200 |
Actuating mechanism of pneumatic piston cut-off valve
Cutting mechanism
公稱通徑 mm | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 |
閥座直徑 mm | 26 | 43 | 43 | 52 | 62 | 79 | 94 | 115 | 145 | 166 | 216 | 可與本公司 商洽生產 | |||
額定流量系數 Kv | 6.5 | 10 | 15 | 25 | 40 | 65 | 100 | 150 | 260 | 350 | 540 | ||||
公稱壓力 MPa | 4.0(JB/T79·2-94) | ||||||||||||||
行程 mm | 16 | 25 | 40 | 60 | |||||||||||
介質溫度 ℃ | -16~150(常溫);-60~450(中溫);-60~550(高溫);-250~60(低溫); | ||||||||||||||
流量特性 | 兩位快開式 | ||||||||||||||
配執行機構 | ZSD-D | ZSD-3 | ZSD-5 | ZSD-7 | |||||||||||
法蘭尺寸、型式 | 按JB/T79·2-94凹式(常、中、高溫);按JB/T79·3-94榫槽式(低溫) | ||||||||||||||
閥體材質 | ZG270-500;ZG1Cr18Ni9Ti;ZG0Cr18Ni12Mo2Ti |
型號 | ZSD-D | ZSD-3 | ZSD-5 | ZSD-7 |
活塞直徑 mm | 150 | 200 | 300 | 400 |
you效面積 cm2 | 175 | 305 | 700 | 1245 |
行程 mm | 16 | 25 | 40 | 60 |
進氣孔螺紋 | M16×1.5 | M20×1.5 | M24×2 | |
MAX輸出力 N | 7200 | 12800 | 29300 | 5200 |
可配附件 | 空氣過濾減壓器、保位閥、行程開關、閥位傳送器、電磁閥、手輪機構等 | |||
操作氣源壓力 KPa | 500 |
公稱通徑 mm | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | |
泄漏量 滴/min | 軟密封 | 0 | ||||||||||
硬密封 | 1 | 3 | 5 | 7 | 9 | |||||||
切斷時間 S | 1~2 | 2~4 | ||||||||||
額定行程偏差% | +10 |
Note: leakage test medium is water.
Allowable pressure difference for pneumatic piston shut-off valve
公稱通徑 mm | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | |
允許壓差 | 氣開 | 4.0 | 4.0 | 4.0 | 2.8 | 3.5 | 2.4 | |||||
氣關 | 4.0 | 2.5 | 1.7 | 1.0 | 1.1 | 0.8 | 0.6 |

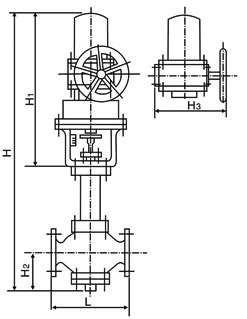

Main dimensions of pneumatic piston cut-off valve
Normal temperature type
公稱 通徑 | L | H2 | 帶手輪 | 不帶手輪 | |||||
H | H1 | H3 | 重量kg | H | H1 | 重量kg | |||
20 | 180 | 53 | 662 | 447 | 222 | 39 | 574 | 359 | 26 |
25 | 190 | 111 | 732 | 46 | 644 | 33 | |||
32 | 210 | 117 | 744 | 48 | 656 | 35 | |||
40 | 230 | 131 | 885 | 570 | 280 | 85 | 778 | 463 | 61 |
50 | 255 | 146 | 915 | 89 | 808 | 65 | |||
65 | 285 | 181 | 1131 | 706 | 389 | 135 | 969 | 542 | 97 |
80 | 310 | 190 | 1147 | 143 | 983 | 99 | |||
100 | 355 | 194 | 1155 | 163 | 991 | 109 | |||
125 | 425 | 256 | 1588 | 1022 | 305 | 1305 | 739 | 218 | |
150 | 460 | 266 | 1608 | 331 | 1325 | 244 | |||
200 | 560 | 289 | 1659 | 445 | 1376 | 358 |
公稱 通徑 | L | H2 | 帶手輪 | 不帶手輪 | |||||
H | H1 | H3 | 重量kg | H | H1 | 重量kg | |||
20 | 180 | 53 | 813 | 447 | 222 | 43 | 725 | 359 | 30 |
25 | 190 | 111 | 883 | 52 | 795 | 39 | |||
32 | 210 | 117 | 895 | 54 | 807 | 41 | |||
40 | 230 | 131 | 1036 | 570 | 280 | 90 | 929 | 463 | 66 |
50 | 255 | 146 | 1066 | 95 | 969 | 71 | |||
65 | 285 | 181 | 1296 | 706 | 389 | 145 | 1132 | 542 | 101 |
80 | 310 | 190 | 1310 | 155 | 1146 | 111 | |||
100 | 355 | 194 | 1318 | 172 | 1154 | 128 | |||
125 | 425 | 256 | 1803 | 1022 | 327 | 1520 | 739 | 240 | |
150 | 460 | 266 | 1823 | 356 | 1540 | 269 | |||
200 | 560 | 289 | 1874 | 464 | 1591 | 377 |
公稱通徑 | L | H2 | H3 | -100℃ | -200℃ | -250℃ | |||||||||
帶手輪 | 不帶手輪 | 帶手輪 | 不帶手輪 | 帶手輪 | 不帶手輪 | ||||||||||
H1 | H | H1 | H | H1 | H | H1 | H | H1 | H | H1 | H | ||||
20 | 180 | 53 | 222 | 500 | 1127 | 500 | 1039 | 700 | 1237 | 700 | 1239 | 900 | 1527 | 900 | 1439 |
25 | 190 | 111 | 500 | 1181 | 500 | 1093 | 700 | 1381 | 700 | 1293 | 900 | 1581 | 900 | 1491 | |
32 | 210 | 117 | 500 | 1193 | 500 | 1105 | 700 | 1393 | 700 | 1305 | 900 | 1593 | 900 | 1505 | |
40 | 230 | 131 | 280 | 500 | 1310 | 500 | 1203 | 700 | 1510 | 700 | 1403 | 900 | 1710 | 900 | 1603 |
50 | 255 | 146 | 500 | 1335 | 500 | 1228 | 700 | 1535 | 700 | 1428 | 900 | 1735 | 900 | 1628 | |
65 | 285 | 181 | 600 | 1554 | 600 | 1447 | 800 | 1754 | 800 | 1647 | 1000 | 1954 | 1000 | 1847 | |
80 | 310 | 190 | 600 | 1565 | 600 | 1458 | 800 | 1765 | 800 | 1658 | 1000 | 1965 | 1000 | 1858 | |
100 | 355 | 194 | 600 | 1569 | 600 | 1462 | 800 | 1769 | 800 | 1662 | 1000 | 1769 | 1000 | 1862 | |
125 | 425 | 256 | 378 | 700 | 1942 | 700 | 1809 | 900 | 2142 | 900 | 2009 | 1100 | 2342 | 1100 | 2209 |
150 | 460 | 266 | 700 | 1952 | 700 | 1819 | 900 | 2152 | 900 | 2019 | 1100 | 2352 | 1100 | 2219 | |
200 | 560 | 289 | 700 | 1982 | 700 | 1849 | 900 | 2182 | 900 | 2049 | 1100 | 2382 | 1100 | 2249 |
閥體材質公稱壓力為4.0MPa介質工作溫度℃200250300350<400<425<450<475<500<510<525<550MAX工作壓力MPaZG270-500 ZG1Cr18Ni9Ti4.03.73.33.02.82.31.8 4.03.63.43.22.82.22.01.71.4 |
