ZSPC/ZSNC pneumatic piston cut-off valve
- sell:021-32051999
- sell:021-32050777
- fax:021-66099555
Details
- Product Introduction
- Service Promise
- Ordering Process
ZSPC pneumatic piston cut-off valve/ZSNC pneumatic piston cut-off valve consists of pneumatic piston actuator and cutting mechanism. According to the material of valve core sealing surface, it can be divided into hard sealing and soft sealing, and according to the structure type of valve core, it can be divided into single guiding plate type and single guiding balance type. The utility model has the advantages of simple structure, reliable movement, close cutting and fast closing. It is suitable for the automatic control system of gas and liquid medium without granule and impurity, which requires fast and tight closing and quick emptying.
Main technical parameters of pneumatic piston cut-off valve
公稱通徑 mm | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | ||
閥座直徑 mm | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 可與本公司 商洽生產 | |
額定流量系數 Kv | 6.5 | 10 | 15 | 25 | 40 | 65 | 100 | 150 | 260 | 350 | 540 | ||
公稱壓力 MPa | 1.6 ; 4.0 ; 6.4 | ||||||||||||
行 程 mm | 10 | 16 | 25 | 30 | 40 | 60 | |||||||
流量特性 | 快 開 | ||||||||||||
介質溫度 ℃ | 軟密封:-40~150(常溫型) ; 硬密封:-40~200(常溫型); -40~450(中溫型) | ||||||||||||
法蘭尺寸、型式 | PN16按JB79-59; PN4.0、64按JB/T79.2-94凹式 | ||||||||||||
閥體材質 | ZG230-450 ; ZG1Cr18Ni9Ti;ZGOCr18Ni12Mo2Ti | ||||||||||||
閥座、閥芯材質 | 1Cr18Ni9 ; 0Cr18Ni12Mo2Ti | ||||||||||||
上閥蓋型式 | 普通式(常溫型) ; 熱片式(中溫型) | ||||||||||||
可配附件 | 手輪機構、空氣過濾減壓器、電磁閥、信號回訊器等 |
Note: flange, GB, ANSI, JPI and DIN can be provided. Flange spacing can be determined according to user needs.
Actuating mechanism of pneumatic piston cut-off valve
公稱通徑 mm | 執行機構型號 | 氣缸直徑 mm | 行程 mm | 進氣孔螺紋 | 備注 | |||
常溫型 | 中溫型 | 常溫型 | 中溫型 | 常溫型 | 中溫型 | |||
20 | ZSPA-1、ZSPB-1 | ZSPA-1、ZSPB-1 ZSN-1 | 150 | 150 | 10 | M16×1.5 | M16×1.5 | ZSP:單作用 ZSN:雙作用 |
25 | ||||||||
40 | ZSPA-2、ZSPB-2 ZSN-1 | 200 | 16 | |||||
50 | ||||||||
65 | ZSPA-2、ZSPB-2 | ZSPA-3、ZSPB-3 ZSN-2 | 200 | 300 | 25 | M20×1.5 | ||
80 | ||||||||
100 | 30 | |||||||
150 | ZSPA-3、ZSPB-3 | ZSPA-4、ZSPB-4 ZSN-3 | 300 | 400 | 40 | M20×1.5 | M24×2 | |
200 | 60 |
公稱通徑 mm | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | |||
閥座直徑 mm | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | |||
軟密封泄漏量 | 水 試 △P=△Pmax ml/min | 0 | ||||||||||
氣 試 △P=0.35MPa 氣泡數/min | 1 | 1 | 2 | 3 | 4 | 6 | 11 | 18 | 27 | 45 | ||
硬密封泄漏量 | 水 試 MPa | 4.0 | 3.0 | |||||||||
ml/min | 0.24 | 0.30 | 0.38 | 0.48 | 0.60 | 0.78 | 0.96 | 1.2 | 1.125 | 1.35 | 1.8 | |
氣試△P=0.35MPa ml/min | 23.3 | 29.2 | 37.3 | 46.7 | 58 | 75.8 | 93.3 | 116.7 | 145.8 | 175 | 233.3 | |
切斷時間 s | 0.5 | 1 | 1.5 | 2 | 3 | 4 | ||||||
額定行程偏差% | +6 |
公稱通徑 mm | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | ||||
氣缸直徑 mm | 150 | 200 | 300 | 400 | |||||||||
氣源壓力KPa | 500 | 允許壓差 | 整機 氣關式 | 流開 | 4.0 | 4.0 | 2.6 | 2.2 | 3.8 | 2.6 | 2.0 | 1.95 | 1.59 |
流關 | 4.0 | 4.0 | 4.0 | 3.1 | 3.1 | 2.1 | 1.6 | 2.0 | 1.63 | ||||
整機 氣開式 | 流開 | 4.0 | 3.0 | 2.1 | 1.7 | 1.7 | 1.1 | 0.9 | 0.52 | 0.43 | |||
流關 | 4.0 | 4.0 | 1.0 | 4.0 | 4.0 | 3.6 | 2.7 | 3.4 | 2.2 |

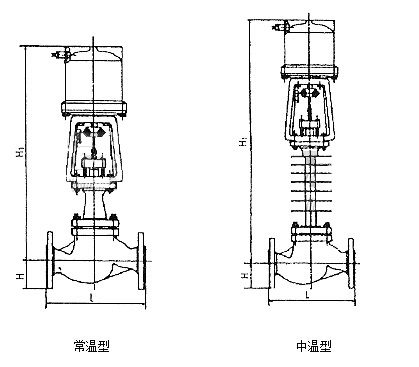

公稱通徑 DN | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | ||
L | PN MPa | 1.6 | 194 | 197 | 235 | 267 | 292 | 317 | 368 | 500 | 635 |
4.0 | 650 | ||||||||||
6.4 | 206 | 210 | 251 | 286 | 311 | 337 | 394 | 520 | 650 | ||
H | 65 | 70 | 85 | 90 | 100 | 105 | 125 | 170 | 205 | ||
不帶手輪 | H1 | 常溫型 | 445 | 455 | 485 | 485 | 605 | 605 | 620 | 962 | 988 |
中溫型 | 596 | 606 | 636 | 636 | 770 | 770 | 785 | 1178 | 1226 | ||
帶手輪 | H1 | 常溫型 | 630 | 640 | 670 | 670 | 790 | 790 | 805 | 1087 | 1113 |
中溫型 | 781 | 791 | 821 | 821 | 955 | 955 | 970 | 1303 | 1351 | ||
H2 | 160 | 160 | 160 | 160 | 160 | 160 | 270 | 270 | 270 | ||
H3 | 220 | 220 | 220 | 220 | 220 | 220 | 390 | 390 | 390 |
