DS/J61H water seal globe valve
- sell:021-32051999
- sell:021-32050777
- fax:021-66099555
Details
- Product Introduction
- Service Promise
- Ordering Process
DS/J61H-25, DS/J61H-40, DS/J61H-63 type water seal globe valves are suitable for cutting off or connecting the medium in the pipeline of the return water condensing system of thermal power plants with nominal pressure PN2.5-6.4 MPa and working temperature 0-450 C and the system pipeline of petroleum and chemical requirements and air isolation.
Product features of water seal globe valves
1, the product is designed and manufactured according to the national standard GB12235, with novel structure, reasonable material selection and beautiful appearance. The connection ends are flanged and welded, and can be configured according to the different requirements of users.
2. The packing box is designed as a water-sealed structure with 0.6-1.6 Mpa water filler. It has small friction and good sealing. It can isolate the whole system from the atmosphere and ensure good air tightness.
3. The valve stem is quenched and tempered and nitriding on surface. It has good corrosiveness and abrasion resistance.
4. Compact structure, flexible operation, convenient maintenance and long service life.
5. Inverted seal is made of stainless steel thread connection seal seat or body surfacing austenitic stainless steel, and the inverted seal is reliable. Packing replacement and maintenance can be carried out without stopping. It is convenient and quick, and does not affect the operation of the system.
Water seal globe valve standard
Design and manufacture: JB/T3595
Structure length: GB/T15188.1
Pressure temperature class: GB/T3595
Test and inspection: GB13927 JB/T9092
Performance parameters of water seal globe valves
型號 | DS/J61H-25 | DS/J61H-40 | DS/J61H-63 | |
工作壓力(MPa) | 2.5 | 4.0 | 6.3 | |
適用溫度(℃) | ≤425 | |||
適用介質 | 水、蒸汽、油品、非腐蝕性氣體 | |||
材料 | 閥桿 | 1Cr13或2Cr13 | ||
閥體、閥蓋、支架 | WCB25 | |||
閘板、閥瓣、密封面 | Cr13型不銹鋼或硬質合金 | |||
閥座密封面 | 不銹鋼 | |||
閥桿螺母 | 鋁青銅 | |||
填料 | 柔性石墨 |

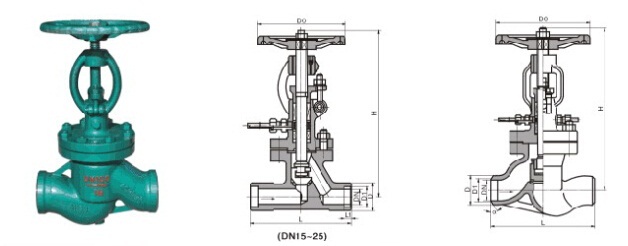

公稱通徑 | 主要外形尺寸和連接尺寸 | ||||
L | D | D1 | H | D0 | |
DS/J61H-25 | |||||
15 | 130 | 36 | 19 | 11 | 120 |
20 | 150 | 44 | 26 | 11 | 140 |
25 | 160 | 44 | 33 | 12 | 140 |
32 | 180 | 48 | 34 | - | 180 |
40 | 200 | 55 | 40 | - | 200 |
50 | 230 | 64 | 50 | - | 250 |
65 | 290 | 82 | 65 | - | 250 |
80 | 310 | 94 | 78 | - | 300 |
100 | 350 | 117 | 97 | - | 350 |
125 | 400 | 144 | 122 | - | 400 |
150 | 480 | 170 | 148 | - | 400 |
200 | 600 | 220 | 197 | - | 400 |
DS/J61H-40 | |||||
15 | 13 | 38 | 19 | - | 120 |
20 | 150 | 47 | 26 | - | 140 |
25 | 160 | 47 | 33 | - | 160 |
32 | 180 | 53 | 34 | - | 160 |
40 | 200 | 57 | 40 | - | 200 |
50 | 230 | 68 | 50 | - | 250 |
65 | 290 | 85 | 65 | - | 280 |
80 | 310 | 98 | 78 | - | 320 |
100 | 350 | 122 | 97 | - | 350 |
125 | 400 | 148 | 122 | - | 400 |
150 | 480 | 176 | 148 | - | 400 |
