JY41W/Y oxygen cut-off valve

JY41W/Y oxygen cut-off valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

JY41W/Y oxygen cut-off valve is designed and manufactured according to the operation characteristics of oxygen pipeline network and the flammable and explosive characteristics of oxygen medium. It is designed and manufactured on the basis of safety, reliability and superior performance, and in accordance with the "Oxygen Safety Regulations" formulated by the Ministry of Metallurgical Industry of the People's Republic of China. Use the valve. The main material is stainless steel or copper alloy with excellent flame retardancy, the sealing surface is body or surfacing welding D802, the rest of the internal parts are stainless steel or copper alloy; the transmission part is lubricated with non-flammable grease and marked with obvious oil-prohibition mark. In structure, the bracket is totally enclosed, and has an electrostatic discharge device. The valve stem is equipped with a dust cap. The cut-off valve is adopted according to the regulations of the Ministry of metallurgical industry on the technical requirements of the oxygen network of iron and steel enterprises.


The main material is stainless steel or copper alloy with excellent flame retardancy, the sealing surface is body or surfacing welding D802, the rest of the internal parts are stainless steel or copper alloy; the transmission part is lubricated with non-flammable grease and marked with obvious oil-prohibition mark.


In structure, the bracket is totally enclosed, and has an electrostatic discharge device. The valve stem is equipped with a dust cap.


Oxygen pipeline valves of Shanghai Qigao Valve Plant have been trusted by oxygen pipeline networks of major and medium-sized steel plants, oxygen plants and petrochemical plants since they were put on the market.


Structural features of oxygen cut-off valve


1. For nominal pressure PN (> 1.6 MPa), DNl25-200 adopts inner bypass structure; DN250-500 adopts out-of-band bypass valve structure. The purpose is to reduce the pressure difference between the front and back of the valve to avoid high flow rate, high scour and high temperature, thus ensuring the safe operation of the oxygen pipeline network, but also reducing the operating torque.


2. Medium flow direction: PN (> 1.6MPa), DN (> 100) media flow from the bottom of the disc to the top of the disc (i.e. low in and high out), DN (> 125) media flow from the disc square to the bottom (high in and low out) o for the DN (> 125) valve using medium flow direction of high in and low out, on the one hand to meet the structural needs of the in-pass valve, on the other hand due to the medium pressure. The closing force of the valve is greatly reduced.


Three, the valve is equipped with electrostatic safety device, which can avoid spark generated by static electricity.


4. Compared with ordinary globe valves, the support part of the globe valves used in oxygen pipelines adopts a fully enclosed structure, and the protective cover plate on the support can be opened when the packing is pressed, thus playing the role of oil and dust prevention. And there is an obvious oil prohibition mark.


Five. All parts are strictly degreased.


Performance parameters of oxygen cut-off valve


公稱壓力
PN
強度試驗壓力
MPa
氣密封試驗壓力
MPa
適用介質
適用溫度
氧氣
常溫
1.6
2.4
1.6
2.5
3.8
2.5
3.0
4.5
3.0
4.0
6.0
4.0


Main parts of oxygen globe valves


零件名稱
材料
閥體、閥蓋、閥瓣
鑄鉻鎳鈦不銹鋼、銅合金
閥桿
鉻鎳不銹鋼
閥桿螺母
青銅

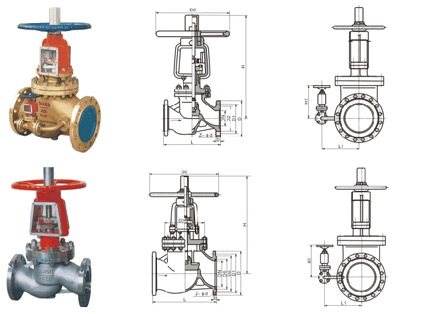

Main dimensions of oxygen cut-off valves


JY41W-16P JY41Y-16P JY41W-16T oxygen cut-off valve


DN
L
D
D1
D2
b
f
Z-d
H
H1
DO
L1
重量(kg)
15
130
95
65
45
14
2
4-14
240
100
6
20
150
105
75
55
14
2
4-14
270
100
8
25
160
115
85
65
14
2
4-14
270
125
10
32
180
135
100
78
16
2
4-18
280
160
14
40
200
145
110
85
16
3
4-18
350
160
20
50
230
160
125
100
16
3
4-18
400
320
35
65
290
180
145
120
18
3
4-18
530
360
50
80
310
195
160
135
20
3
8-18
560
400
65
100
350
215
180
155
20
3
8-18
618
450
80
125
400
245
210
185
99
3
8-18
675
450
106
150
480
280
240
210
24
3
8-23
743
560
125
200
600
335
295
265
26
3
12-23
850
640
254
250
650
405
355
320
30
3
12-25
975
270
720
380
418
300
750
460
410
375
30
4
12-25
1115
270
800
415
502
400
950
580
525
485
36
4
16-30
1380
280
900
465
980
450
1050
640
585
545
40
4
20-30
1530
350
495
1200
500
1150
705
650
608
44
4
20-34
1700
400
525
1300


jy41w - 25p jy41y - 25p jy41w - 25t 氧氣截止閥


DN
I
D
D1
D2
b
f
Z-d
H
H1
DO
L1
重量(kg)
15
130
95
65
45
16
2
4-14
240
100
6
20
150
105
75
55
16
2
4—14
270
100
8
25
160
115
85
65
16
2
4—14
270
125
10
32
180
135
100
78
18
2
4-18
280
160
14
40
200
145
110
85
18
3
4-18
350
160
20
50
230
160
125
100
20
3
4—18
400
320
35
65
290
180
145
120
22
3
8-18
530
360
50
80
310
195
160
135
99
3
8-18
560
400
65
100
350
230
190
160
24
3
8-23
618
450
88
125
400
270
220
188
28
3
8-25
675
450
115
150
480
300
250
218
30
3
8—25
743
560
148
200
600
360
310
278
34
3
12-25
850
640
293
250
650
425
370
332
36
3
12—30
975
270
720
380
455
300
750
485
430
390
40
4
16-30
1115
270
800
415
585
400
950
610
550
505
48
4
16-34
1380
280
900
465
1110
450
1050
660
600
555
50
4
20-34
1530
350
495
1350
500
1150
730
660
610
52
4
20-41
1700
400
525
1470
