G941J electric rubber lined diaphragm valve

G941J electric rubber lined diaphragm valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

The opening and closing parts of the internal thread diaphragm valve are a piece of diaphragm made of soft material, which separates the inner cavity from the inner cavity of the valve cover and the driving parts. The diaphragm made of rubber or plastic soft seal has better sealing performance. Because the diaphragm is a fragile part, it should be replaced periodically according to the characteristics of the medium. Internal threaded diaphragm valves are used for medium containing hard suspended solids; since the medium of internal threaded diaphragm valves only contacts the valve body and diaphragm, there is no need for packing boxes, no leakage of packing boxes, and no corrosion to the stem.


Design and manufacture: BS5156


Structure length: BS5156


Flange joint dimensions: BS4504, DIN2532, JIS B2212, ANSI B16.1, ISO2004


purpose


This valve is specially designed to control general corrosive media, and can be used for opening and closing and throttling of various pipelines or equipment.


Applicable temperature: less than 120 degrees C, or less than 150 degrees centigrade (in accordance with diaphragm material)


Pressure level: PN (MPa) 0.6 1 1.6


Material Science


Body: cast iron, ductile iron, carbon steel, stainless steel.


Bonnet: cast iron, ductile iron, carbon steel, stainless steel.


Diaphragm: Rubber


Disc: cast iron and stainless steel


Stem: carbon steel, stainless steel


Hand wheel: Cast Iron


test


Lining layer: EDM test


Test and inspection according to BS6755 standard


Nominal pressure: PN (MPa)


Valve body: PN * 1.5


Sealing: PN x 1.1

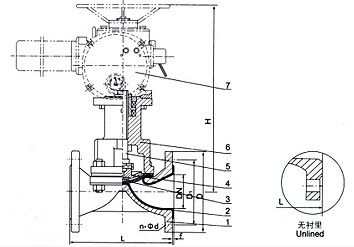

Parts list: 1. valve 2. diaphragm 3. disc 4. stem 5. valve 6, handwheel.




Main dimension parameters

公稱通徑
公稱壓力
MPa
工作壓力
MPa
L
mm
SW
mm
b
mm
H1
mm
b
mm
D0
mm
質(zhì)量
Kg/kilos
DN
G
8
1/4
1.6
1.6
50
20
-
60
66
45
0.6
10
3/8
50
24
-
45
0.7


15
1/2
65
38
8
84
92
50
0.8
20
3/4
85
40
12
93
103
50
1.1
25
1
110
48
18
106
120
66
1.9
32
1 1/4
120
58
18
137
156
96
3.3
40
1 1/2
140
69
18
142
163
96
4.2
50
2
165
85
20
167
192
96
5.8
65
2 1/2
1.0
203
60
20
190
225
165
9.5
80
3
254
105
32
206
246
230
16.2


The best quality, first-class service Qigao creates more value for you!

"Qigao Valve" expects to continuously improve service quality and strive for excellence. "Sincere service" is the eternal theme of "Qigao". "Qigao" strictly followsIS09001-2000 Quality system certification requirements, strict quality control, responsibility to people, to ensure the healthy operation of production, sales and service. Strengthen communication with users and provide quality products to our customers with perfection and perfect service. Hereby our factory makes the following commitments:

Product Standards:

Products in strict accordance with ChinaGB、HG Standard and USAPISuch as standard design, manufacturing, acceptance. The hardness of the sealing surface meets the requirements of the state and the width exceeds the national standard.

pre-sale service:

Product introduction, technical exchange, non-standard product design, troubleshooting。

Sale service:

A trustworthy contract guarantees timely delivery and keeps in touch with customers. For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" brand product quality period is from the factory12In the month, the implementation of the "three guarantees" service (return, replacement, warranty).

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions, so as to further improve product quality.

3、Respond quickly to the quality of user complaints, after-sales service personnel rushed to the scene in 24-36 hours (48 hours outside the province).

4、For after-sales service, users are required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of Qigao.

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us in advance to tell the required valve model, specification, quantity, delivery time and location, and timely transfer to the factory account according to the total 30% deposit or full payment. The rest of the payment is pending. Import before shipment to arrange delivery in time.



Order Process:

1、Customer purchase list fax to021-33872143,Or call us 021-33872141

2、Receive customer purchase list, provide valve model selection and quotation (price list)。

3、Specific agreement: delivery date, special requirements, etc.。

download Google:

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us first to tell the required valve model, specifications, quantity, delivery time and location, and press the total30%The deposit or full payment will be remitted to our factory account in time., The rest of the payment will be remitted before shipment to arrange delivery in time.。

Sale service:

Trustworthy contract, guarantee timely delivery, keep in touch with customers at any time。

For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" product quality period is from the factory12Month, practiceThree packsService (return, replacement, warranty)。

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions.,
In order to further improve product quality。

3、Respond quickly to the quality of user complaints, after-sales service personnel24-36Hours (outside the province48Hour) rushed to the scene。

4、For after-sales service, the user is required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of “Qigao”.。

statement

  1. All text, data and pictures in this article are for reference only.G941J electric rubber lined diaphragm valvePlease contact us at 4000-700-665 for details of performance, size and price.
