G41J manual weir diaphragm valve

G41J manual weir diaphragm valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

Design and manufacture: BS5156


Structure length: BS5156


Flange joint dimensions: BS4504, DIN2532, JIS B2212, ANSI B16.1, ISO2004


purpose


The valve is specially designed to control non-corrosive or general corrosive media. There is no lining on the inner surface of the valve body or covered with a variety of optional rubber. It is suitable for different working temperatures and liquid pipes.


Applicable temperature: less than 85 degrees, less than 100 degrees, less than 120 degrees, or less than 150 degrees.


Pressure level: PN (MPa) 0.6 1 1.6


Material Science


Body: cast iron, ductile iron, carbon steel, stainless steel.


Bonnet: cast iron, ductile iron, carbon steel, stainless steel.


Lining: no lining, rubber.


Diaphragm: Rubber


Disc: Cast Iron


Stem: carbon steel, stainless steel


Hand wheel: Cast Iron


test


Lining layer: EDM test


Test and inspection according to BS6755 standard


Nominal pressure: PN (MPa)


Valve body: PN * 1.5 seal: PN * 1.1


Structural characteristics


Diaphragm valve is a special type of cut-off valve: 1, the opening and closing part of the elastic seal ensures that there is no internal leakage.


2, streamlined flow path makes the pressure loss small.


3, there is no stuffing box, so there is no leakage.


4. The valve body and cover are separated by the middle diaphragm, so that the valve cover above the diaphragm, the valve stem and other parts are not eroded by the medium.


5, the diaphragm can be replaced and the maintenance cost is low.


6. The variety of lining materials can be applied to all kinds of media, and has the characteristics of high strength and good corrosion resistance.

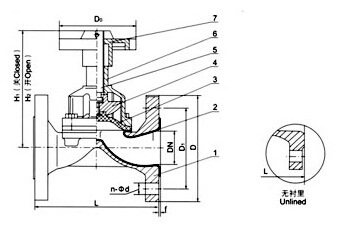

Parts list: 1. valve body 2. valve body lining 3. diaphragm 4. disc 5. stem 6. valve cover 7 hand wheel.
