UZ41H plunger valve
- sell:021-32051999
- sell:021-32050777
- fax:021-66099555
Details
- Product Introduction
- Service Promise
- Ordering Process

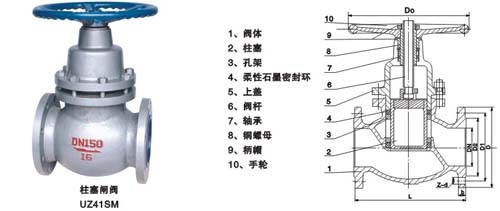

UZ41H plunger gate valve is composed of valve body, valve cover, valve stem, plunger, guide sleeve, sealing ring, hand wheel and other parts (as shown). When the handwheel rotates, the plunger is driven up and down in the guide sleeve by the valve stem to reciprocate, so that the oblique cone of the plunger end and the valve seat surface complete the opening and closing functions of the valve.
In the valve plunger and seal ring with interference fit, by adjusting the flange bolt pre-tightening force, so that the compression of the sealing ring produced by the lateral force and the body of the hole and plunger cylindrical seal so that high wear-resistant non-toxic new sealing material, so the seal is reliable, durable, thus improving the service life of the valve.
Plunger gate valve is designed and manufactured according to the original connecting dimension of gate valve. Because of leakage, poor sealing ring and short service life, the plunger gate valve combines the advantages of no leakage of plunger valve and the characteristics of quick opening and closing, high temperature and high pressure resistance, and becomes a new type of structure without leakage. Leaky plunger gate valve.
Performance specification
閥體材料 | 適用溫度 | 適用介質 | 壓力范圍 |
鑄鋼 | ≤250℃ | 水、蒸汽、油品 | PNl.6-4.0MPa |
鑄鐵 | ≤180℃ | 水、蒸汽、油品 | PNl.6 |
不銹鋼 | ≤200℃ | 硝酸、醋酸 | 通徑范圍 |
含鉬不銹鋼 | ≤200℃ | 氮、氫、尿素等 | DNl5-400mm |
實驗項目 | 實驗介質 | 實驗壓力 |
壓強實驗 | 水 | 1.5PN |
高壓密封試驗 | 水 | 1.1PN |
低壓氣密封試驗 | 氣 | 0.5-O.7MPa |
DN 尺寸(mm) | UZ41H-16C(Y、P、R) | |||||||||||||||
15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | |
L | 130 | 150 | 160 | 180 | 240 | 250 | 265 | 280 | 300 | 325 | 350 | 400 | 450 | 500 | 550 | 600 |
W | 100 | 100 | 120 | 140 | 160 | 180 | 200 | 240 | 270 | 310 | 340 | 400 | 520 | 640 | 760 | 900 |
D | 95 | 105 | 115 | 135 | 145 | 160 | 180 | 195 | 215 | 245 | 280 | 335 | 405 | 460 | 520 | 580 |
K | 65 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 355 | 410 | 470 | 525 |
D1 | 45 | 55 | 65 | 78 | 85 | 100 | 120 | 135 | 155 | 185 | 210 | 265 | 320 | 375 | 435 | 485 |
t | 14 | 14 | 14 | 16 | 16 | 16 | 18 | 20 | 20 | 22 | 24 | 26 | 30 | 30 | 34 | 36 |
n-φ | 4-14 | 4-14 | 4-14 | 4-18 | 4-18 | 4-18 | 4-18 | 8-18 | 8-18 | 8-18 | 8-23 | 8-23 | 12-23 | 12-25 | 16-25 | 16-30 |
DN 尺寸(mm) | UZ41H-25C(Y、P、R) | |||||||||||||||
15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | |
L | 130 | 150 | 160 | 180 | 240 | 250 | 265 | 280 | 300 | 325 | 350 | 400 | 450 | 500 | 550 | 600 |
W | 100 | 100 | 120 | 140 | 160 | 180 | 200 | 240 | 280 | 310 | 340 | 400 | 520 | 640 | 760 | 900 |
D | 95 | 105 | 115 | 135 | 145 | 160 | 180 | 195 | 230 | 270 | 300 | 360 | 425 | 485 | 550 | 610 |
K | 65 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 190 | 220 | 250 | 310 | 370 | 430 | 490 | 550 |
D1 | 45 | 55 | 65 | 78 | 85 | 100 | 120 | 135 | 160 | 188 | 218 | 278 | 332 | 390 | 448 | 505 |
t | 16 | 16 | 16 | 18 | 18 | 20 | 22 | 22 | 24 | 28 | 30 | 34 | 36 | 40 | 44 | 48 |
n-φ | 4-14 | 4-14 | 4-14 | 4-18 | 4-18 | 4-18 | 8-18 | 8-18 | 8-23 | 8-25 | 8-25 | 12-25 | 12-30 | 16-30 | 16-34 | 16-34 |
DN 尺寸(mm) | UZ41H-40C(Y、P、R) | |||||||||||||||
15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | |
L | 130 | 150 | 160 | 180 | 200 | 250 | 265 | 280 | 300 | 325 | 350 | 400 | 450 | 500 | 550 | 600 |
W | 100 | 100 | 120 | 140 | 160 | 180 | 200 | 240 | 280 | 310 | 340 | 400 | 520 | 640 | 760 | 900 |
D | 95 | 105 | 115 | 135 | 145 | 160 | 180 | 195 | 230 | 270 | 300 | 375 | 445 | 510 | 570 | 655 |
K | 65 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 190 | 220 | 250 | 320 | 385 | 450 | 510 | 585 |
D1 | 45 | 55 | 65 | 78 | 85 | 100 | 120 | 135 | 160 | 188 | 218 | 282 | 345 | 408 | 465 | 535 |
t | 16 | 16 | 16 | 18 | 18 | 20 | 22 | 22 | 24 | 28 | 30 | 38 | 42 | 46 | 52 | 58 |
n-φ | 4-14 | 4-14 | 4-14 | 4-18 | 4-18 | 4-18 | 8-18 | 8-18 | 8-12 | 8-26 | 8-26 | 12-30 | 12-33 | 16-33 | 16-36 | 16-39 |
DN 尺寸(mm) | UZ41H-64C(Y、R、P) | ||||||
50 | 65 | 80 | 100 | 125 | 150 | 200 | |
L | 250 | 280 | 310 | 350 | 400 | 450 | 550 |
W | 200 | 240 | 280 | 310 | 340 | 400 | 520 |
D | 175 | 200 | 210 | 250 | 295 | 340 | 405 |
K | 135 | 160 | 170 | 200 | 240 | 280 | 345 |
D1 | 105 | 130 | 140 | 168 | 202 | 240 | 300 |
t | 26 | 28 | 30 | 32 | 36 | 38 | 44 |
n-φ | 4-23 | 8-23 | 8-23 | 8-25 | 8-30 | 8-34 | 12-34 |
DN 尺寸(mm) | UZ41H-100C(Y、R、P) | ||||||
50 | 65 | 80 | 100 | 125 | 150 | 200 | |
L | 250 | 280 | 310 | 350 | 400 | 450 | 550 |
W | 200 | 240 | 280 | 310 | 340 | 400 | 520 |
D | 195 | 220 | 230 | 285 | 310 | 350 | 430 |
K | 145 | 170 | 180 | 210 | 250 | 290 | 360 |
D1 | 112 | 138 | 148 | 172 | 210 | 250 | 312 |
t | 28 | 32 | 34 | 38 | 42 | 40 | 54 |
n-φ | 4-25 | 8-25 | 8-23 | 8-30 | 8-34 | 12-34 | 12-41 |
