GIQ-A pneumatic high vacuum butterfly valve

GIQ-A pneumatic high vacuum butterfly valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

GIQ-A Pneumatic High Vacuum Butterfly Valve GIQ-A Series Pneumatic High Vacuum Butterfly Valve is suitable for use in high vacuum systems to turn on or cut off air flow. The valve is powered by compressed air, through the electromagnetic directional valve to change the direction of the air passage, the implementation of cylinder propulsion, so that fixed on the rotating shaft valve plate rotation 90 degrees to achieve valve opening and closing.

Type GIQ-A series pneumatic high vacuum butterfly valves are suitable for working air and non corrosive gases.

Main technical performance

適用范圍(Pa)
2x105~1.3x10-5
閥門漏率(Pa.L/S)
≤1.3x10-6
介質溫度(℃)
-25~+80(密封材料為丁腈橡膠)
-30~+150(密封材料為氟橡膠)
氣源壓力(MPa)
0.4~0.6
法蘭標準
GB/T6070
安裝位置
任意
電源電壓
標準出廠:AC220V/50Hz
特殊指定:AC110V;DC24V;DC12V等
信號反饋
標準出廠:不帶反饋信號
特殊指定:磁性開關DV/AC5~240V

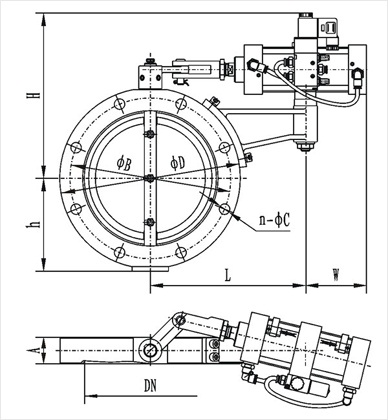

主要外形尺寸
型號
通徑(DN)
ΦD
ΦB
H
h
A
L
W
n-ΦC
GIQ-50A
50
110
90
162
55
26
160
62
4-Φ9
GIQ-63A
63
130
110
172
66
32
180
81
GIQ-80A
80
145
125
178
74
8-Φ9
GIQ-100A
100
165
145
187
84
8-Φ12
GIQ-125A
125
200
175
208
102
35
207
86
GIQ-150A
150
225
200
220
114
GIQ-200A
200
285
260
256
146
45
236
100
12-Φ11
GIQ-250A
250
335
310
282
173
50
GIQ-300A
300
425
395
350
216
55
280
118
12-Φ14
GIQ-400A
400
510
480
392
259
60
304
130
16-Φ14
GIQ-500A
500
600
565
440
312
80
350
175
12-Φ18
GIQ-600A
600
710
670
525
366
100
360
212
12-Φ21
GIQ-800A
800
920
880
690
473
130
520
268
20-Φ21
