900X emergency shut off valve

900X emergency shut off valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

900X emergency shutoff valve is used in the parallel water supply system of domestic water supply and fire water supply. It is normally used for domestic water supply. When the fire occurs, the valve automatically closes the domestic water to ensure sufficient water for fire protection. When the fire fighting stops using water, the pressure decreases and the valve automatically restores the domestic water. The valve makes the system need not set up a special fire fighting separate water supply network, thus greatly saving the construction cost and daily water consumption. The valve is sensitive, safe, reliable, easy to debug and long service life.

Main technical parameters


公稱壓力(Mpa)
殼體試驗壓力(MPa)
密封試驗壓力(MPa)
適用介質
介質溫度(℃)
1.0
1.5
1.1
0-80
1.6
2.4
1.76
2.5
3.75
2.75


Material of main parts


零件名稱
零件材料
閥體 閥蓋
WCB
閥座 閥盤
銅合金
密封圈 O型圈
丁腈橡膠
閥桿
2Cr13
彈簧
50CrVA
針型閥
銅合金
球閥
銅合金
浮球閥
銅合金
微型過濾器
不銹鋼

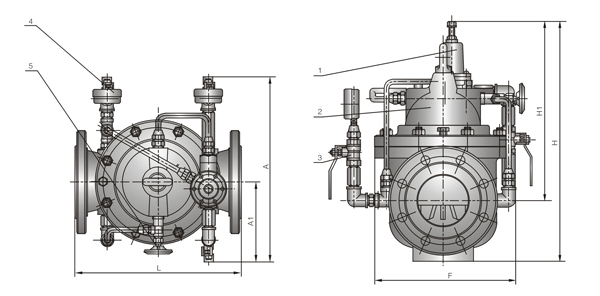

Part list

1, pilot valve 2, main valve 3, ball valve 4, pressure gauge 5, needle valve.

Main shape connection dimensions


DN
L
A
A1
H
H1
F
D
mm
D1
mm
D2
mm
n-Φd
mm
mm
mm
mm
mm
mm
PN1.0
PN1.6
PN2.5
PN1.0
PN1.6
PN2.5
PN1.0
PN1.6
PN2.5
PN1.0
PN1.6
PN2.5
20
180
292
136
342
247
116
105
105
105
75
75
75
58
58
56
4-13.5
4-13.5
4-14
25
180
292
136
342
247
116
115
115
115
85
85
85
68
68
65
4-13.5
4-13.5
4-14
32
180
292
136
342
247
116
140
140
140
100
100
100
78
78
76
4-17.5
4-17.5
4-18
40
240
330
155
395
278
170
150
150
150
110
110
112
88
88
84
4-17.5
4-17.5
4-18
50
240
330
155
395
278
170
165
165
165
125
125
125
102
102
99
4-17.5
4-17.5
4-18
65
250
350
165
405
298
180
185
185
185
145
145
145
122
122
118
4-17.5
4-17.5
8-18
80
285
365
175
430
313
210
200
200
200
160
160
160
133
133
132
8-17.5
8-17.5
8-18
100
360
410
195
510
350
275
220
220
235
180
180
190
158
158
156
8-17.5
8-17.5
8-22
125
400
455
220
560
365
310
250
250
270
210
210
220
184
184
184
8-17.5
8-17.5
8-26
150
455
475
230
585
420
355
285
285
300
240
240
250
212
212
211
8-22
8-22
8-26
200
585
530
255
675
450
460
340
340
360
295
295
310
268
268
274
8-22
12-22
12-26
250
650
623
300
730
470
500
395
405
425
350
355
370
320
320
330
12-22
12-26
12-30
300
800
700
340
760
490
580
445
460
485
400
410
430
370
370
389
12-22
12-26
16-30
350
860
840
415
840
526
640
505
520
555
460
470
490
430
430
448
16-22
16-26
16-33
400
960
880
430
910
570
715
565
580
620
515
525
550
482
482
503
16-26
16-30
16-36
450
1075
930
460
1030
610
780
615
640
670
565
585
600
532
550
548
20-26
20-30
20-36
500
1075
980
490
1135
665
830
670
715
730
620
650
660
585
585
609
20-26
20-33
20-36
600
1230
1060
530
1270
725
920
780
840
845
725
770
770
685
685
720
20-30
20-36
20-39
700
1650
1130
560
1460
865
980
895
910
960
840
840
875
800
800
820
24-30
24-36
24-42
800
1750
1230
610
1640
975
1050
1015
1025
1085
950
950
990
905
905
928
24-33
24-39
24-48

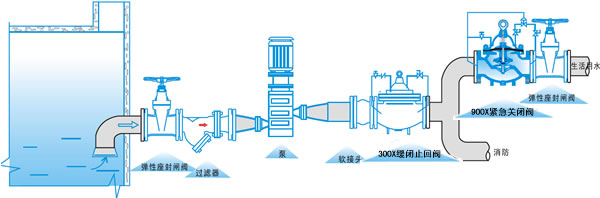

安裝示意圖
