JM744X/JM644X quick opening mud valve
- sell:021-32051999
- sell:021-32050777
- fax:021-66099555
Details
- Product Introduction
- Service Promise
- Ordering Process

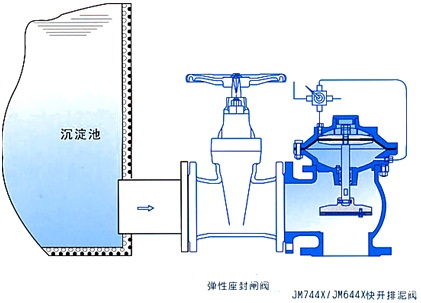

JM744X, JM644X diaphragm type hydraulic, pneumatic quick-opening mud discharge valve, is a kind of angle-type truncated valve actuated by hydraulic or pneumatic sources, usually installed in rows at the bottom of the sedimentation tank lateral wall, to remove sediment and sediment deposited at the bottom of the tank. The valve is divided into two chambers by nylon reinforced rubber diaphragm. The valve is connected with hydraulic or pneumatic source and controlled by electric or manual two-position four-way reversing valve to realize rapid sludge discharge. The valve replaces the piston with diaphragm without moving friction, and is more suitable for slurry and other granular media, greatly improving the service life of the valve.
The main features of the hydraulic quick-opening mud discharge valve are that the piston type is replaced by the double-chamber diaphragm transmission mechanism, which has no movement wear and long service life. The main purpose of the hydraulic quick-opening sludge discharge valve is to install outside the bottom wall of various sedimentation tanks. The hydraulic quick-opening sludge discharge valve is used to remove sediment and dirt from the bottom of the tank.
Main technical parameters
型號 | 工程壓力 PN(Mpa) | 殼體試驗壓力 PN(Mpa) | 隔膜傳動介質 | 隔膜傳動工作壓 PN(Mpa) | 介質溫度 |
JM744X-10 JM644X-10 | 1.0 | 1.5 | 清水、氣 | 0.15-1.0 | 0-80℃ |
零件名稱 | 月體、月蓋 | 膜片壓板、閥盤 | 閥桿 | 膜片 |
材 料 | 鑄鐵、球鐵、碳鋼 | 球鐵、青銅 | 不镕鋼 | 尼龍強化橡膠 |
公稱通徑DN | L | L1 | H |
100 | 160 | 120 | 370 |
150 | 190 | 150 | 440 |
200 | 225 | 190 | 530 |
250 | 260 | 220 | 615 |
300 | 280 | 260 | 785 |
350 | 315 | 300 | 880 |
400 | 340 | 340 | 970 |
The best quality, first-class service Qigao creates more value for you!
"Qigao Valve" expects to continuously improve service quality and strive for excellence. "Sincere service" is the eternal theme of "Qigao". "Qigao" strictly followsIS09001-2000 Quality system certification requirements, strict quality control, responsibility to people, to ensure the healthy operation of production, sales and service. Strengthen communication with users and provide quality products to our customers with perfection and perfect service. Hereby our factory makes the following commitments:
Product Standards:
Products in strict accordance with ChinaGB、HG Standard and USAPISuch as standard design, manufacturing, acceptance. The hardness of the sealing surface meets the requirements of the state and the width exceeds the national standard.
pre-sale service:
Product introduction, technical exchange, non-standard product design, troubleshooting。
Sale service:
A trustworthy contract guarantees timely delivery and keeps in touch with customers. For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.
After sales service:
1、"Qigao" brand product quality period is from the factory12In the month, the implementation of the "three guarantees" service (return, replacement, warranty).
2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions, so as to further improve product quality.
3、Respond quickly to the quality of user complaints, after-sales service personnel rushed to the scene in 24-36 hours (48 hours outside the province).
4、For after-sales service, users are required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of Qigao.
1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:
a、Structure length;
b、Connection Type;
c、Nominal diameter, full diameter, reduced diameter, pipe size;
d、Operating medium and temperature, pressure range;
e、Tests, inspection standards and other requirements
2、The factory can configure various types of driving devices according to customer's specific requirements.。
3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.
4、For futures and order customers, please call us in advance to tell the required valve model, specification, quantity, delivery time and location, and timely transfer to the factory account according to the total 30% deposit or full payment. The rest of the payment is pending. Import before shipment to arrange delivery in time.
Order Process:
1、Customer purchase list fax to021-33872143,Or call us 021-33872141
2、Receive customer purchase list, provide valve model selection and quotation (price list)。
3、Specific agreement: delivery date, special requirements, etc.。
