Y44H bellows pressure reducing valve

Y44H bellows pressure reducing valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

Y44H bellows pressure reducing valve is used in the pipeline of steam, air and water without corrosive medium whose temperature is below 200 C, so that the pressure of medium passing through the valve body can be kept constant to meet the needs of work. The inlet pressure P1 is 1.0-0.1 MPa, the outlet pressure P2 is 0.4-0.05 MPa, and the pressure difference between the front and back of the valve is not less than 0.6 MPa, nor less than 0.05 MPa.


Action principle and structure elucidation


1. The inlet medium pressure enters the body cavity from the opening clearance between the disc and the valve body sealing ring to make the medium pressure flow through the bellows combination box. The bellows and springs are compressed by the medium pressure. The disc closes the valve body sealing ring with the displacement of the valve stem. The media in front of the valve is cut off without the medium pressure behind the valve. The supplement. When the pressure of the medium behind the valve decreases, the bellows are deformed by the radial force of the adjustable spring, and the valve stem jacks the disc. The medium can be reduced by pressure through the valve body sealing ring.


2. Bellows pressure relief valve is composed of valve body, valve cover, disc, valve body sealing ring, stem, bellows, regulating spring and other parts, body cavity inlet assembly disc, valve body sealing ring and auxiliary spring, auxiliary spring is to maintain disc and valve body sealing ring automatic sealing, outlet body cavity assembly elastic sealing element (bellows) Ensure the leakage of medium pressure after the valve and compensate for the non-uniformity of pressure. The screw is to adjust the working performance of the spring loaded pressure reducing valve.


Main technical parameters

公稱壓力(MPa)
0.6
1.0
1.6
殼體試驗壓力(MPa)
0.9
1.5
2.4
密封試驗壓力(MPa)
0.6
1.0
1.6
MAX進口壓力(MPa)
0.6
1.0
1.6
出口壓力范圍(MPa)
0.05-0.4
0.1-0.8
0.1-1.0
壓力特性偏差(MPa)△P2P
GB12244-1989
流量特性偏差(MPa)△P2G
GB12244-1989
MIN壓差(MPa)
0.1
0.15
0.15
滲漏量
GB12245-1989

* shell test does not include bellows. When shell pressure test, the bellows assembly must be removed.


Material of main parts

零件名稱
零件材料
閥體、閥蓋
WCB
底蓋
WCB
閥座、閥瓣
2Cr13
波紋管
1Cr18N9Ti
波紋管上墊
2Cr13
波紋管下墊
2Cr13
號向座
2Cr13
主閥彈簧
50CrVA
調節彈簧
60S12Mn
Discharge coefficient (Cv)
DN
15
20
25
32
40
50
65
80
100
Cv
1
2.5
4
6.5
9
16
25
36
64

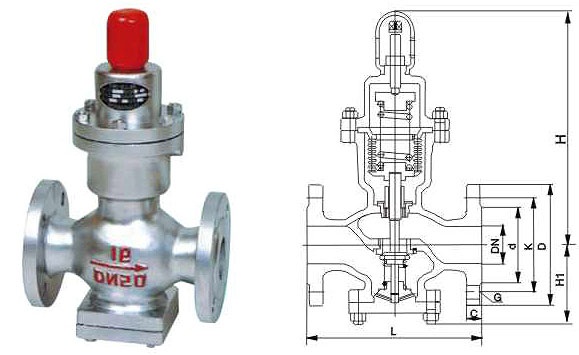

Main dimensions
公稱通徑DN
外形尺寸
連接尺寸
L
H
H1
PN1.6MPa
PN1.6MPa
PN1.6MPa
0.6/1.0MPa
1.6MPa
D
K
n-Φ
d
C
D
K
n-Φ
d
C
D
K
n-Φ
d
C
15
140
140
290
90
80
55
4-12
40
12
95
65
4-14
45
12
95
65
4-14
45
14
20
140
140
295
98
90
65
4-12
50
12
105
75
4-14
55
14
105
75
4-14
55
14
25
160
160
295
110
100
75
4-12
60
14
115
85
4-14
65
14
115
85
4-14
65
14
32
1080
180
295
110
120
90
4-14
70
14
135
100
4-18
78
16
135
100
4-18
78
16
40
200
200
325
125
130
100
4-14
80
14
145
110
4-18
85
16
145
110
4-18
85
16
50
230
230
325
125
150
110
4-14
90
14
160
125
4-18
100
16
160
125
4-18
100
16
65
280
325
130
160
130
4-14
110
14
180
145
4-18
120
18
180
145
4-18
120
18
80
310
380
160
185
150
4-18
125
16
195
160
4-18
135
18
195
160
8-18
135
20
100
350
380
170
205
170
4-18
145
16
215
180
8-18
155
20
215
180
8-18
155
20
