PZ973H electric pinch knife gate valve

PZ973H electric pinch knife gate valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

PZ973H electric clip knife gate valve drive part uses multi-rotating electric device to drive and control the valve opening and closing. Operators can control the valve from a long distance in the control room or operate it manually on the spot. They can also cooperate with the computer to realize automatic control. Widely used in drainage, heating, power plants, chemical, food, paper, pharmaceutical, coal, mining and other projects, to meet the requirements of modern industrial and agricultural automation.


Electric device parameters


Power supply: AC380V, 50HZ.


Standard type: Standard type products with dust-proof, rain-proof shell protection, protection grade IP65, can be directly used in the outdoor.


Waterproof: the product has a protective level of dust and water immersion (IP67).


Explosion proof type (EX): explosion-proof and so on are D II BT4/D II CT4 (without acetylene).


Ambient temperature: -20 C ~40 C


Optional: equipped with electrical controller.


Characteristic


1. Quick opening and closing, reliable balance and high automation.


2. Installation height and position are not limited.


3, the use of explosion-proof electric devices, in flammable, explosive, and even toxic gas environment can work normally.


4. Equipped with manual, in case the power supply is interrupted, the valve can be opened or closed manually to effectively control the medium and prevent accidents.

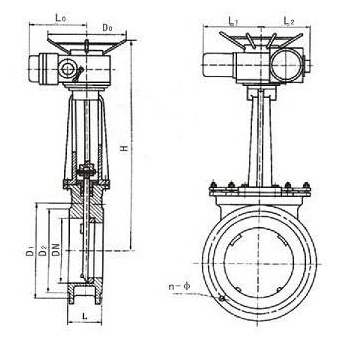

Main dimensions


公稱壓力
DN
L
D1
D2
H
D0
L0
L1
L2
N-Φ
電裝型號
0.6MPa
50
43
90
110
600
125
215
318
197
4-M12
DZ10
65
46
110
130
670
125
215
318
197
4-M12
DZ10
80
46
125
150
680
125
215
318
197
4-M16
DZ10
100
52
145
170
700
125
215
318
197
4-M16
DZ10
125
56
175
200
720
125
215
318
197
8-M16
DZ10
150
56
200
225
790
125
215
318
197
8-M16
DZ10
200
60
255
280
850
125
215
363
197
8-M16
DZ15
250
68
310
335
1100
125
215
363
197
12-M16
DZ20
300
78
362
395
1180
125
215
363
197
12-M20
DZ20
350
78
412
445
1280
125
215
363
197
12-M20
DZ30
400
102
462
495
1460
125
215
363
197
16-M20
DZ45
450
114
518
550
1600
235
240
437
277
16-M20
DZ45
500
127
568
600
1800
235
240
437
277
16-M20
DZ45
600
154
670
705
2100
235
240
437
277
20-M22
DZ60
700
165
775
810
2300
260
274
526
283
24-M22
DZ90
800
190
880
920
2500
260
274
526
283
24-M27
DZ120
900
203
980
1020
2700
295
319
554
309
24-M27
DZ180
1000
216
1080
1120
2900
295
319
554
309
28-M27
DZ250
1200
254
1295
1340
3400
295
319
554
309
32-M30
DZ250
1.0MPa
50
43
160
125
600
125
215
318
197
4-M16
DZ10
65
46
120
145
670
125
215
318
197
4-M16
DZ10
80
46
135
160
680
125
215
318
197
4-M16
DZ10
100
52
155
180
700
125
215
318
197
8-M16
DZ10
125
56
185
210
720
125
215
318
197
8-M16
DZ10
150
56
210
240
790
125
215
318
197
8-M20
DZ10
200
60
265
295
850
125
215
363
197
8-M20
DZ15
250
68
320
350
1100
125
215
363
197
12-M20
DZ20
300
78
368
400
1180
125
215
363
197
12-M20
DZ20
350
78
428
460
1280
125
215
363
197
16-M20
DZ30
400
102
482
515
1460
235
240
437
277
16-M22
DZ45
450
114
532
565
1600
235
240
437
277
20-M22
DZ45
500
127
585
620
1800
235
240
437
277
20-M22
DZ60
600
154
685
725
2100
260
274
526
283
20-M27
DZ90
700
165
800
840
2300
260
274
526
283
24-M27
DZ120
800
190
898
950
2500
295
319
554
309
24-M30
DZ180
900
203
1005
1050
2700
295
319
554
309
28-M30
DZ180
1000
216
1115
1160
2900
295
319
554
309
28-M30
DZ250
1200
254
1325
1380
3400
295
319
554
309
32-M36
DZ250


The best quality, first-class service Qigao creates more value for you!

"Qigao Valve" expects to continuously improve service quality and strive for excellence. "Sincere service" is the eternal theme of "Qigao". "Qigao" strictly followsIS09001-2000 Quality system certification requirements, strict quality control, responsibility to people, to ensure the healthy operation of production, sales and service. Strengthen communication with users and provide quality products to our customers with perfection and perfect service. Hereby our factory makes the following commitments:

Product Standards:

Products in strict accordance with ChinaGB、HG Standard and USAPISuch as standard design, manufacturing, acceptance. The hardness of the sealing surface meets the requirements of the state and the width exceeds the national standard.

pre-sale service:

Product introduction, technical exchange, non-standard product design, troubleshooting。

Sale service:

A trustworthy contract guarantees timely delivery and keeps in touch with customers. For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" brand product quality period is from the factory12In the month, the implementation of the "three guarantees" service (return, replacement, warranty).

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions, so as to further improve product quality.

3、Respond quickly to the quality of user complaints, after-sales service personnel rushed to the scene in 24-36 hours (48 hours outside the province).

4、For after-sales service, users are required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of Qigao.

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us in advance to tell the required valve model, specification, quantity, delivery time and location, and timely transfer to the factory account according to the total 30% deposit or full payment. The rest of the payment is pending. Import before shipment to arrange delivery in time.



Order Process:

1、Customer purchase list fax to021-33872143,Or call us 021-33872141

2、Receive customer purchase list, provide valve model selection and quotation (price list)。

3、Specific agreement: delivery date, special requirements, etc.。

download Google:

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us first to tell the required valve model, specifications, quantity, delivery time and location, and press the total30%The deposit or full payment will be remitted to our factory account in time., The rest of the payment will be remitted before shipment to arrange delivery in time.。

Sale service:

Trustworthy contract, guarantee timely delivery, keep in touch with customers at any time。

For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" product quality period is from the factory12Month, practiceThree packsService (return, replacement, warranty)。

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions.,
In order to further improve product quality。

3、Respond quickly to the quality of user complaints, after-sales service personnel24-36Hours (outside the province48Hour) rushed to the scene。

4、For after-sales service, the user is required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of “Qigao”.。

statement

  1. All text, data and pictures in this article are for reference only.PZ973H electric pinch knife gate valvePlease contact us at 4000-700-665 for details of performance, size and price.
