DJ44W-6T cryogenic angle stop valve

DJ44W-6T cryogenic angle stop valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

DJ44W-6T cryogenic angle stop valve

Product specification


公稱通徑
DN25-350mm
公稱壓力
PN0.6MPa
適用介質
液氧、液氮、液氬、液化天然氣、液態二氧化碳、液態丙烷等
適用溫度
-196℃~+80℃


DJ44W-6T cryogenic angle stop valve

Product specification


閥體
ZHSi80-3
閥瓣
H62
閥桿
0Cr18Ni9
填料、密封圈
PTFE

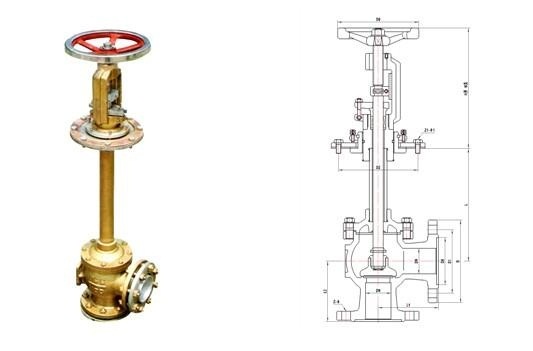

Main shape and connection dimensions
公稱通徑
DN(mm)
DJ44W-6T 低溫角式截止閥
重量
尺 寸(mm)
(kg)
L
H開
H關
D
D1
D2
D6
L1
L2
Z1-d1
Z-d
D0

25
250-600
269
244
100
75
142
53
80
62
4-10
4-12
120
11.5
40
250-800
292
272
130
100
160
76
90
90
6-14
4-14
160
21.7
50
300-800
306
282
140
110
165
86
100
100
6-14
6-14
160
28.8
65
300-1000
342
305
160
130
185
106
115
115
6-14
6-14
200
34.3
80
300-1000
350
310
185
150
200
121
130
130
6-14
6-14
200
46.5
100
300-1000
385
340
205
170
225
142
140
140
8-14
8-18
280
58.7
125
300-1000
390
350
235
200
250
170
145
145
8-14
8-18
280
69.8
150
300-1000
420
360
260
225
290
194
165
165
8-14
10-18
320
99.2
200
500-1200
439
374
315
280
340
248
205
205
12-14
12-18
360
120
250
500-1200
525
440
370
335
435
300
250
250
12-14
16-18
400
207
300
500-1200
535
440
435
395
520
354
270
270
16-18
16-18
450
252
350
500-1200
618
498
485
445
550
404
300
300
12-18
12-22
500
478


The best quality, first-class service Qigao creates more value for you!

"Qigao Valve" expects to continuously improve service quality and strive for excellence. "Sincere service" is the eternal theme of "Qigao". "Qigao" strictly followsIS09001-2000 Quality system certification requirements, strict quality control, responsibility to people, to ensure the healthy operation of production, sales and service. Strengthen communication with users and provide quality products to our customers with perfection and perfect service. Hereby our factory makes the following commitments:

Product Standards:

Products in strict accordance with ChinaGB、HG Standard and USAPISuch as standard design, manufacturing, acceptance. The hardness of the sealing surface meets the requirements of the state and the width exceeds the national standard.

pre-sale service:

Product introduction, technical exchange, non-standard product design, troubleshooting。

Sale service:

A trustworthy contract guarantees timely delivery and keeps in touch with customers. For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" brand product quality period is from the factory12In the month, the implementation of the "three guarantees" service (return, replacement, warranty).

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions, so as to further improve product quality.

3、Respond quickly to the quality of user complaints, after-sales service personnel rushed to the scene in 24-36 hours (48 hours outside the province).

4、For after-sales service, users are required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of Qigao.

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us in advance to tell the required valve model, specification, quantity, delivery time and location, and timely transfer to the factory account according to the total 30% deposit or full payment. The rest of the payment is pending. Import before shipment to arrange delivery in time.



Order Process:

1、Customer purchase list fax to021-33872143,Or call us 021-33872141

2、Receive customer purchase list, provide valve model selection and quotation (price list)。

3、Specific agreement: delivery date, special requirements, etc.。

download Google:

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us first to tell the required valve model, specifications, quantity, delivery time and location, and press the total30%The deposit or full payment will be remitted to our factory account in time., The rest of the payment will be remitted before shipment to arrange delivery in time.。

Sale service:

Trustworthy contract, guarantee timely delivery, keep in touch with customers at any time。

For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" product quality period is from the factory12Month, practiceThree packsService (return, replacement, warranty)。

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions.,
In order to further improve product quality。

3、Respond quickly to the quality of user complaints, after-sales service personnel24-36Hours (outside the province48Hour) rushed to the scene。

4、For after-sales service, the user is required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of “Qigao”.。

statement

  1. All text, data and pictures in this article are for reference only.DJ44W-6T cryogenic angle stop valvePlease contact us at 4000-700-665 for details of performance, size and price.
  2. If there is no explanation, this article is original, reprint, please indicate the address of this article, thank you for your cooperation!
