ZCM gas solenoid valve

ZCM gas solenoid valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

ZCM solenoid valve is a kind of actuator which can be used to switch on and off for heating and burning medium pipeline of city gas, liquefied petroleum gas, natural gas and so on. It is widely used in textile industry, printing industry gas heat setting and glass, light bulb industry kiln heating and other industries gas heating automatic control system.

Often closed type

This valve DNl5-50 is a direct-acting low-pressure solenoid valve with primary valve opening, DN65-300 is a pilot solenoid valve with secondary valve opening. Direct-acting solenoid valve after receiving electrical signals, electromagnetic force will directly lift the plug, media flow; after power failure, electromagnetic force disappears, plug in the weight and spring force for the fall, media cut off.

The pilot solenoid valve receives the electric signal, the armature drives the auxiliary valve plug to catch up under the electromagnetic force, the fluid on the main valve diaphragm flows away through the auxiliary valve, reducing the pressure acting on the main valve diaphragm. When the pressure on the main valve diaphragm decreases to a certain value, the armature drives the main valve diaphragm, and makes the main valve open by the pressure difference. Mass flow; after the coil is cut off, the electromagnetic force disappears, the armature is reset due to the weight drop, and the main valve is closed tightly by the medium pressure.

Often open type

The valve has a unique direct-acting structure. When the coil of the electromagnetic head is energized, the static core assembly located around the coil is convenient.

The magnetic force overcomes the gravity of the stem assembly and the elastic force of the return spring, and then sucks up the moving iron core together with the stem assembly, so that the valve disc fixed on the stem assembly is tightly sealed with the valve seat, and the valve closes. After power failure, the disc restores to its original position under the gravity of the return spring and the stem assembly, and the valve opens. The pipe returned to normal ventilation.

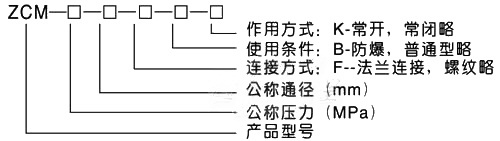

Model description

technical parameter


公稱通徑(mm)
15
20
25
32
40
50
65
80
100
125
150
200
250
300
350
工作介質
煤氣、液化石油氣和天然氣等燃氣
介質溫度℃
-20~80
環境溫度℃
-40~60
公稱壓力(MPa)
1.0
工作壓差(MPa)
0~0.03
0~0.1
安裝方式
垂直安裝
電源電壓
AC220V DC24V 其它規格可作特殊訂貨
工作電流(A)
直流
0.13
0.17
0.41
0.71
1.1
交流
0.13
0.17
0.41
0.71
1.1
功率(VA)
直流
26
30
80
140
220
交流
26
30
80
140
220
防爆標志
Exd IIBT4

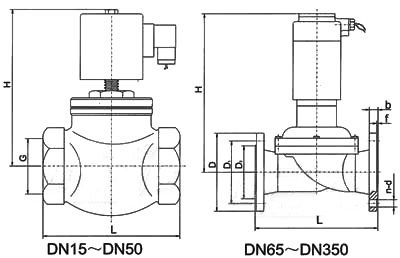

Installation size
常閉型
公稱通徑
DN
內螺紋連接
法蘭連接
外形尺寸
內螺紋
外形尺寸
法蘭尺寸
H
L
G
H
L
D
D1
D2
b
f
n-d
15
153
92
1-2
210
130
95
65
46
14
2
4-φ14
20
153
92
3-4
210
150
105
75
56
16
2
4-φ14
25
153
110
1
210
160
115
85
65
16
3
4-φ14
32
176
120
1 1 /4
221
180
140
100
76
18
3
4-φ18
40
176
140
1 1 /2
230
200
150
110
84
18
3
4-φ18
50
192
162
2
252
230
165
125
99
20
3
4-φ18
65
-
-
-
390
290
185
145
118
20
3
4-φ18
80
-
-
-
401
310
200
160
132
22
3
8-φ18
100
-
-
-
408
350
220
180
156
24
3
8-φ18
125
-
-
-
424
400
250
210
184
26
3
8-φ18
150
-
-
-
515
480
285
240
211
26
3
8-φ22
200
-
-
-
540
600
340
295
266
26
3
8-φ22
250
-
-
-
573
730
395
350
319
28
3
12-φ22
300
-
-
-
608
850
445
400
370
28
4
12-φ22
350
-
-
-
700
980
505
460
429
28
4
12-φ22
常開型
公稱通徑
DN
內螺紋連接
法蘭連接
外形尺寸
內螺紋
外形尺寸
法蘭尺寸
H
L
G
H
L
D
D1
D2
b
f
n-d
15
153
92
1-2
154
130
95
65
46
14
2
4-φ14
20
153
92
3-4
154
150
105
75
56
16
2
4-φ14
25
153
110
1
156.5
160
115
85
65
16
3
4-φ14
32
176
120
1 1 /4
178
180
140
100
76
18
3
4-φ18
40
176
140
1 1 /2
186
200
150
110
84
18
3
4-φ18
50
192
162
2
193
230
165
125
99
20
3
4-φ18
65
-
-
-
461
290
185
145
118
20
3
4-φ18
80
-
-
-
481
310
200
160
132
22
3
8-φ18
100
-
-
-
531
350
220
180
156
24
3
8-φ18
125
-
-
-
551
400
250
210
184
26
3
8-φ18
150
-
-
-
627
480
285
240
211
26
3
8-φ22
200
-
-
-
725
600
340
295
266
26
3
8-φ22
250
-
-
-
842
730
395
350
319
28
3
12-φ22
300
-
-
872
850
445
400
370
28
4
12-φ22

350
-
-
-
-
980
505
460
429
30
4
16-φ22
