G41F46 lined fluorine diaphragm valve

G41F46 lined fluorine diaphragm valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

The basic series of fluorine diaphragm valves are full lining G41F46, EG41F46, weir and G45F46 type DC. The composite diaphragm valve separates the inner cavity of the lower part of the valve body from the inner cavity of the valve cover, and forms a direct current channel with it, so that the inner parts of the upper part of the valve stem, disc and other parts of the diaphragm are completely isolated from the medium, thus eliminating the packing sealing structure, and the leakage and leakage of the medium can be avoided simultaneously. The surface is uniformly coated with a layer of FEP. The inner surface of the valve body passage is smooth, the fluid resistance is small, the CV value is high, the flow ability is strong, the torque is moderate, adopt the four-stage sealing structure and the sealing surface is matched with the SI rubber elastic liner valve seat, completely achieves the zero leakage of the medium.

Basic model

手動
G41F3
直流式
G45F3
G41F46
G45F46
氣動
G641F3
電動
G941F3
G641F46
G941F46
Material of main parts
序號
零件名稱
灰鑄鐵
鑄鋼
不銹耐酸鑄鋼
超低不銹鋼耐酸鑄鋼
Z
C
P
R
P
R
1
閥體/閥蓋
HT250
WCB
CF8
CF8M
CF3
CF3M
2
閥瓣/閥桿
35
1cr13
1Cr18Ni9Ti
1Cr18Ni12Mo2Ti
00cr18Ni10
00Cr17Ni14Mo2
3
襯里/閥座
PTFE(F4)、PCTFE(F3)、FEP(F46)、PFA(可溶性F4)
4
隔膜
FEP(F46)/CR(氯丁橡膠)、PFA(可溶性F4)/FPDM(乙丙橡膠)
5
支架
WCB
CF8
CF8
6
閥桿螺母
ZCuAI10Fe3
ZCuAI10Fe3
ZCuAI10Fe3
7
緊固螺栓
35
1Cr17Ni2
1Cr18Ni9Ti
8
螺母
45
0Cr18Ni9
0Cr18Ni9
9
手輪
WCB
WCB
WCB

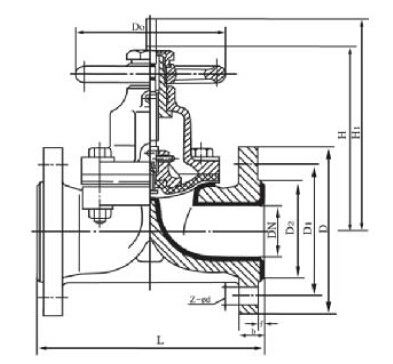

Main shape connection dimensions
公稱通徑
標準值
參考值
DN(mm)
NPS(inch)
L
D
D1
D2
f
b
Z-фd
D0
H
H1
WT(kg)
PN0.6MPa / PN1.0MPa
15
1/2
125
95
65
45
2
14
4-ф14
100
105
110
3.5
20
3/4
135
105
75
55
2
16
4-ф14
100
115
125
4
25
1
145
115
85
65
2
16
4-ф14
120
120
135
5.5
32
11/4
160
135
100
78
2
18
4-ф18
120
125
150
8
40
11/2
180
145
110
85
3
18
4-ф18
140
135
175
11
50
2
210
160
125
100
3
20
4-ф18
140
155
195
14
65
21/2
250
180
145
120
3
20
4-ф18
200
170
200
23
80
3
300
195
160
135
3
22
4-ф18
200
200
255
29
100
4
350
215
180
155
3
22
8-ф18
280
270
325
46
125
5
400
245
210
185
3
24
8-ф18
320
335
405
70
150
6
460
280
240
210
3
24
8-ф23
320
370
450
95
200
8
570
335
295
265
3
26
8-ф23
400
480
600
170
250
10
680
390
350
320
3
28
12-ф23
500
545
620
270
300
12
790
435
395
362
4
24
12-ф23
500
585
680
320
PN1.6MPa
15
1/2
130
95
65
45
2
14
4-ф14
120
110
115
4
20
3/4
150
105
75
55
2
16
4-ф14
120
120
130
5
25
1
160
115
85
65
2
16
4-ф14
140
125
140
6
32
11/4
180
135
100
78
2
18
4-ф18
140
130
155
9
40
11/2
200
145
110
85
3
18
4-ф18
160
140
180
12
50
2
230
160
125
100
3
20
4-ф18
160
160
200
15
65
21/2
290
180
145
120
3
20
4-ф18
200
175
205
24
80
3
310
195
160
135
3
22
8-ф18
200
205
260
30
100
4
350
215
180
155
3
24
8-ф18
280
275
330
48
125
5
400
245
210
185
3
26
8-ф18
320
340
410
75
150
6
480
280
240
210
3
28
8-ф23
320
375
460
105
200
8
600
335
295
265
3
30
12-ф23
400
485
605
182
250
10
730
405
355
320
3
32
12-ф25
500
550
625
295
300
12
850
460
410
375
4
34
12-ф25
500
590
685
345
