Insulation ball valve

Insulation ball valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

Heat preservation ball valve has good heat preservation and cooling characteristics, and the valve diameter and pipe diameter to one, the medium flow in a straight line, resistance is small, most suitable for easy solidification, high viscosity liquid medium. At the same time, it can effectively reduce the heat loss of the medium in the pipeline. The integral jacket design is more uniform in heat preservation and cold preservation. The jacket and the outer side of the valve body are welded with the jacketed nozzle, allowing the maximum pressure of steam or cold water to be 1MPa.

Heat preservation ball valve is mainly used in petroleum, chemical, pharmaceutical, food and other systems, to transport high viscosity medium solidified at room temperature.

Main technical parameters


公稱通徑
DN15~200、NPS 3/4~8
公稱壓力(Mpa)
PN1.6~2.5、Class150~300、10K、20K
閥門材料及適用工況
零件名稱
材 料
3.閥體
WCB
CF8(304)
CF8M(316)
2.閥座
1Cr18Ni9Ti
1Cr18Ni9Ti
0Cr18Ni12Mo2Ti
4.密封圈
聚四氟乙烯、對位聚笨
5.球體
2Cr13
1Cr18Ni9Ti
0Cr18Ni12Mo2Ti
6.閥桿
2Cr13
1Cr18Ni9Ti
0Cr18Ni12Mo2Ti
1.夾套
25
25
25
7.填料
聚四氟乙烯、柔性石墨
適用介質
水、蒸汽、油品
硝酸等腐蝕性介質
醋酸等腐蝕性介質
適用溫度
-29~180℃(聚四氟乙烯)、-20~300℃(對位聚笨)
設計制造
GB/T 12237-1989、API 608、API 6D、JPI 7S-48、BS5351
結構長度
GB/T 12221-1989、ANSI B16.10;JIS B2002
連接法蘭
JB/T74~90(JB74~90)、GB9112~9131、HGJ44-76、SH3406;ANSI B16.5;JIS B2212~2214
壓力試驗
JB/T 9092-1999、API 598
傳動方式
手動、蝸輪蝸桿傳動、氣動、電動。

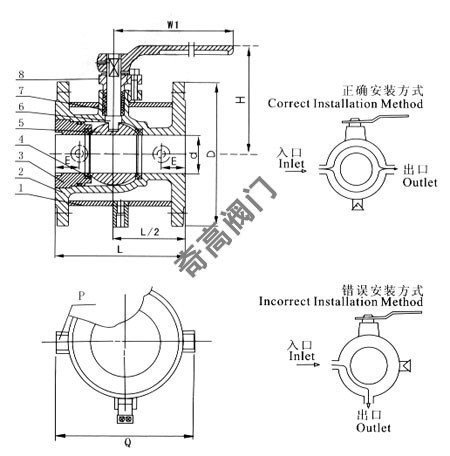

Main dimensions


公稱通徑
d
L
D
E
Q
H
W
管螺紋
(mm)
(in)
(mm)
(in)
P
20
3/4"
19
117
40
1.5"
58.5
147
101
170
G3/4"
25
1"
25
127
50
2"
62.5
156
106
170
G3/4"
40
1 1/2"
38
165
65
2.5"
63.5
181
125
250
G3/4"
50
2"
51
178
80
3"
68
218
135
250
G3/4"
80
3"
76
229
150
6"
82
275
193
350
G3/4"
100
4"
102
254
200
8"
83
300
265
420
G3/4"
150
6"
152
292
250
10"
95
403
355
800
G3/4"
200
8"
203
330
300
12"
100
492
410
800
G3/4"


The best quality, first-class service Qigao creates more value for you!

"Qigao Valve" expects to continuously improve service quality and strive for excellence. "Sincere service" is the eternal theme of "Qigao". "Qigao" strictly followsIS09001-2000 Quality system certification requirements, strict quality control, responsibility to people, to ensure the healthy operation of production, sales and service. Strengthen communication with users and provide quality products to our customers with perfection and perfect service. Hereby our factory makes the following commitments:

Product Standards:

Products in strict accordance with ChinaGB、HG Standard and USAPISuch as standard design, manufacturing, acceptance. The hardness of the sealing surface meets the requirements of the state and the width exceeds the national standard.

pre-sale service:

Product introduction, technical exchange, non-standard product design, troubleshooting。

Sale service:

A trustworthy contract guarantees timely delivery and keeps in touch with customers. For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" brand product quality period is from the factory12In the month, the implementation of the "three guarantees" service (return, replacement, warranty).

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions, so as to further improve product quality.

3、Respond quickly to the quality of user complaints, after-sales service personnel rushed to the scene in 24-36 hours (48 hours outside the province).

4、For after-sales service, users are required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of Qigao.

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us in advance to tell the required valve model, specification, quantity, delivery time and location, and timely transfer to the factory account according to the total 30% deposit or full payment. The rest of the payment is pending. Import before shipment to arrange delivery in time.



Order Process:

1、Customer purchase list fax to021-33872143,Or call us 021-33872141

2、Receive customer purchase list, provide valve model selection and quotation (price list)。

3、Specific agreement: delivery date, special requirements, etc.。
