YFA72W vacuum negative pressure safety valve

YFA72W vacuum negative pressure safety valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

YFA72W vacuum negative pressure relief valve is suitable for the negative pressure system whose temperature is less than 200 ~C. When the negative pressure in the container exceeds the allowable value, the valve opens automatically and sucks air. When the negative pressure in the container reaches the allowable value, the valve closes automatically, thus protecting the equipment and system. Installed in the normal non-negative pressure system, when the container and system release valve is not opened, resulting in negative pressure, the valve automatically opens.
工作溫度
≤200℃
適用介質
YFA72W-10P適用于硝酸類介質
YFA72W-10R適用于醋酸類介質
Material of main parts
NO.
零件名稱
YFA72W-P材料
YFA72W-R材料
1
閥體
ZG1Cr18Ni9Ti
ZG1Cr18Ni12Mo2Ti
2
閥座
1Cr18Ni9Ti
ZG1Cr18Ni12Mo2Ti
3
調節(jié)圈
1Cr18Ni9Ti
1Cr18Ni12Mo2Ti
4
閥蓋
ZG1Cr18Ni9Ti
1Cr18Ni9Ti
5
閥桿
1Cr18Ni9Ti
1Cr18Ni12Mo2Ti
6
彈簧
50CrVA
50CrVA包覆氟塑料

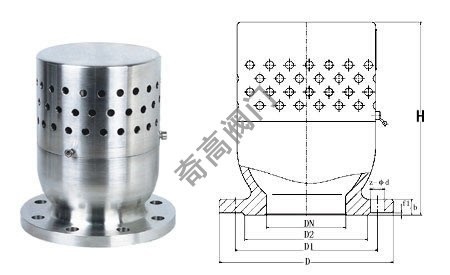

Main dimensions
公稱通徑
尺寸
D
D1
D2
Z-?d
b
f1
H
15
95
65
45
4-14
14
2
110
20
105
75
55
4-14
16
2
130
25
115
85
65
4-14
16
2
150
32
140
100
78
4-18
18
2
180
40
150
110
85
4-18
18
3
200
50
165
125
100
4-18
20
3
221
80
200
160
135
4-18
22
3
245
100
220
180
155
8-18
22
3
253
125
250
210
185
8-18
24
3
280
150
285
240
210
8-23
24
3
329
200
340
295
265
8-23
26
3
377
250
395
350
320
12-23
28
3
440
